How to Create Heat Maps in Excel: A Practical Guide
Learn how to create heat maps in Excel using conditional formatting, color scales, and dashboards. This step-by-step guide covers data prep, palette selection, accessibility, and troubleshooting for practical data visualization.
Learn how to create heat maps in excel using Excel's built-in conditional formatting. This quick guide shows you how to prepare your data, apply a color-scale, and tailor palettes for readability. By the end, you'll be able to turn a grid of numbers into an instantly scannable visual map. No advanced formulas required.
What heat maps in Excel are and why to use them
Heat maps in Excel are visual representations where cell colors reflect numeric values, making patterns, outliers, and trends easier to spot. According to XLS Library, they are a practical data storytelling tool for Excel, especially when you need to communicate performance across categories or time. By mapping numbers to a color scale, you turn a dense grid into an at-a-glance map that highlights highs, lows, and outliers. This approach supports quick comparisons, trend spotting, and decision-making without complex charts. In business contexts—sales performance, survey responses, or KPI tracking—heat maps help audiences focus on critical areas and patterns rather than scanning thousands of cells. The key is choosing a palette that communicates your message clearly and remains accessible to all readers.
In practice, heat maps serve as a bridge between raw data and narrative insights. They are particularly effective when you need to compare multiple categories side by side or monitor performance over time. When used thoughtfully, a heat map can highlight where to allocate resources, spot emerging issues, or confirm a trend without overwhelming viewers with numbers. Keep in mind that readability and color choice matter as much as the data itself, so plan the layout and palette before you begin the formatting.
A well-designed Excel heat map supports quick decision-making. It helps non-technical stakeholders grasp complex datasets, while data analysts can use it as a visual cross-check against other metrics. In the context of collaboration, a heat map can become a shared reference point in dashboards and reports, reducing back-and-forth and speeding up consensus. As you work, remember that consistency across worksheets and dashboards amplifies the utility of heat maps for ongoing monitoring and reporting.
Tools & Materials
- Microsoft Excel (Office 365 or Excel 2019+)(Ensure conditional formatting features are available in your edition.)
- A clean numeric data range(Include headers; avoid merged cells inside the mapped area.)
- Color palette guidance(Prefer color-blind friendly palettes (e.g., blue-yellow or blue-orange).)
- Legend and caption template(Optional but recommended for clarity in dashboards.)
Steps
Estimated time: 25-40 minutes

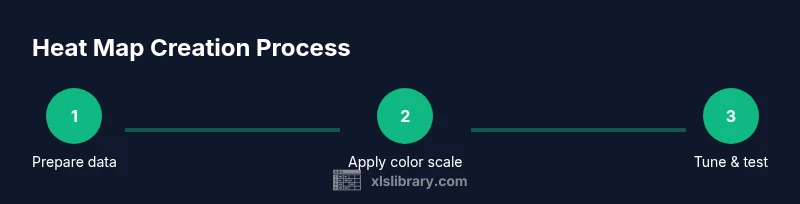

- 1
Prepare your data range
Identify the numeric data you want to visualize and ensure it is in a contiguous range with a clear header row. Remove non-numeric values or place them in a separate helper column. If you plan to compare multiple categories, arrange them in a grid that makes row/column distinctions obvious.
Tip: Use a Table (Ctrl-T) to auto-expand the range as data grows, preserving formatting rules. - 2
Select the data range and apply a Color Scale
Highlight the numeric area you want to map. Go to Home > Conditional Formatting > Color Scales, and choose a three-color scale that suits your data direction (low to high or centered around a midpoint).
Tip: Prefer a three-color scale for clarity; avoid overly subtle palettes that mask differences. - 3
Customize min/mid/max for meaningful contrast
After applying the color scale, adjust the min, mid, and max stops to reflect your data distribution and ensure extremes aren’t washed out. Set midpoints thoughtfully to emphasize deviations or targets.
Tip: Test several presets and pick the one that yields the strongest, most interpretable contrast. - 4
Add a legend and descriptive title
Place a concise title above the heat map and ensure the color legend is visible. The legend should clearly state what colors represent (e.g., low, medium, high).
Tip: If space is tight, a small inset legend near the map improves readability. - 5
Make it dynamic with a table or named range
Convert the data range to an Excel Table (Ctrl-T) so new data automatically inherits formatting. Alternatively, define a named range to drive conditional formatting rules from a single source of truth.
Tip: Dynamic ranges prevent rework when data expands or changes. - 6
Integrate into dashboards
Position the heat map alongside key charts and KPI cards. Maintain consistent color semantics across visuals for quick cross-reference.
Tip: Lock the heat map’s formatting when used in dashboards to avoid accidental edits. - 7
Test accessibility and readability
Check contrast and legibility on different screens. Use color-blind friendly palettes and consider adding numeric labels for critical cells when needed.
Tip: Include a short accessibility note in the workbook so viewers understand how to interpret colors. - 8
Save as a template
If you’ll reuse the heat map structure, save the workbook as a template to accelerate future visualizations.
Tip: Document palette choices and legend interpretation in a quick-reference sheet.
