How to Make a Bar Chart in Excel: A Step-by-Step Guide
Learn how to make a bar chart in Excel with a practical, step-by-step approach. Prepare data, select the chart type, customize axes, and add labels for polished reports.
You're about to learn a practical method for making a bar chart in Excel that clearly communicates data. This guide covers data preparation, selecting the correct bar chart type, labeling axes, and polishing colors and labels for reports and dashboards. By following the steps, you'll produce a reusable chart you can drop into presentations.
What is a bar chart, and why use it in Excel?
Bar charts are ideal for comparing discrete categories side-by-side. In Excel, bar charts can be vertical (column charts) or horizontal, making it easy to highlight differences across groups. For practical business use, a well-designed bar chart reduces noise by focusing on key categories and uses consistent scales to avoid misinterpretation. The XLS Library team recommends starting with clean data and simple defaults before introducing advanced formatting. This ensures your chart communicates the intended story instead of distracting with decorative effects. When you prepare data, put the category labels in the first column and the numerical values in the adjacent columns. Keep headers clear, avoid merged cells in the data range, and confirm that the data is free of blanks that could produce misleading gaps.
Key considerations for Excel bar charts include choosing between a vertical bar (column) chart and a horizontal bar chart, depending on the length of category names and the available space in your report. If you have long category names, a horizontal bar chart can prevent overlap and improve readability. For accessibility, ensure sufficient contrast and label data points where possible.
Data preparation for your bar chart
Before inserting a chart, organize your data in a compact, tabular format. Each row should represent a single observation or category, with one column for the category name and one column (or more) for the values you want to compare. Use a header row with concise titles like “Category” and “Value.” Remove any duplicate or blank rows to avoid distorted results. If your data contains multiple series, keep them in adjacent columns so Excel can plot them as separate bars or groups. Define a clear date range if your data is time-based, and consider adding a small data table at the bottom showing the totals or averages that you might reference in your chart caption.
Choosing the right bar chart type
Excel offers several bar chart varieties: clustered bars, stacked bars, and 100% stacked bars. Choose clustered bars to compare categories side by side, stacked bars to show how components contribute to a whole, and 100% stacked bars to emphasize proportion. Choose clustered bars for most straightforward comparisons. If you’re presenting proportions, adjust the axis to emphasize relative differences and avoid misleading scales. In Excel, you can switch between bar chart types with a few clicks in the Chart Design tab. Remember that the goal is to present your data clearly, not to showcase every possible style.
Formatting basics: colors, fonts, and accessibility
Color plays a major role in readability. Use a limited color palette that contrasts well with the background. Avoid color combinations that are inaccessible to color-blind readers; use patterns or labels to reinforce distinctions when necessary. Choose legible fonts and 8–12 pt axis labels, so data remains readable in print or on a projector. Add a descriptive chart title and a concise axis label for context. Also consider disabling gridlines or reducing their intensity to minimize visual noise. Export the chart as a high-resolution image for reports, ensuring it scales well in slides and print.

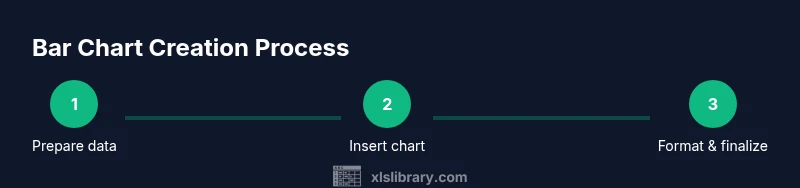

Step-by-step overview
This section outlines the core flow of building a bar chart in Excel. You’ll prepare the data, insert a chart, adjust the type, format the axes, add labels, and finalize with a clear legend and caption. Keep the data range selected and verify that all categories are visible within the plotting area. If your chart doesn’t fit well on a page, resize the chart canvas and reassess the axis limits to prevent truncation.
Common pitfalls and troubleshooting
Common issues include: misreading the axis due to improper scaling, misaligned data labels, and overlapping category names. To fix, verify the data range, check that the correct series is selected, and adjust the axis options to set minimum/maximum values or enable data labels. When your chart becomes crowded, simplify by filtering the dataset or switching to a 2D chart instead of a 3D style. Finally, ensure your chart is saved in a compatible format for the target publication.
Real-world examples and templates
By studying practical templates, you can adapt the basics to many situations: quarterly sales comparisons, department headcounts, or product category performance. Start with a clean template that uses consistent fonts, colors, and label placement. Save the chart as a reusable template so you can insert new data without remaking the entire visualization. You can also adopt a standard caption style that briefly explains what the chart shows and where the data comes from.
Tools & Materials
- Excel installed (Microsoft 365 or Excel 2019+)(Ensure you have bar chart capabilities and access to Insert > Charts.)
- Clean data table(Categories in column A, values in column B; headers should be clear.)
- Mouse or trackpad(For selecting large data ranges accurately.)
- Optional: sample dataset(Helps practice if you don’t have your own data.)
- Printer or presentation slide deck (optional)(Export or paste chart for reports.)
Steps
Estimated time: 30-45 minutes
- 1
Prepare your data
Organize data with clear headers (e.g., Category and Value) and remove blanks. This ensures Excel can plot accurately without misaligned points. If you have multiple series, place them in adjacent columns.
Tip: Keep headers short and consistent to simplify axis labeling. - 2
Select the data range
Click and drag to select the entire data range, including headers. The first column will be used for category labels; other columns are plotted as data series.
Tip: Include all relevant rows to avoid truncated categories. - 3
Insert a bar chart
Go to Insert > Charts and choose Bar Chart. Pick Clustered Bar for straightforward comparisons. The chart appears on the worksheet.
Tip: If you don’t see the exact option, switch to a different chart type and back again. - 4
Adjust chart type if needed
If you started with a column chart, use Chart Design > Change Chart Type to switch to Bar if desired.
Tip: This is often necessary to accommodate long category names. - 5
Format axes
Click the axis to adjust minimum/maximum values, scale, and tick marks. Ensure the axis range doesn’t exaggerate minor differences.
Tip: Avoid setting a ceiling that trims data labels. - 6
Add data labels
Enable data labels to show exact values, enhancing interpretability. Place them above bars if space allows.
Tip: If labels clutter, apply labels only to major categories. - 7
Adjust colors and style
Choose a limited color palette and tidy fonts. Maintain consistent color meaning across multiple charts.
Tip: Use Excel’s built-in themes to keep consistency. - 8
Add legend and title
Insert a descriptive chart title and position the legend for readability. Align with the surrounding content in your report.
Tip: Put the legend to the side if horizontal space is limited. - 9
Polish and finalize
Review the chart for readability, export as needed, and save a template version for future use.
Tip: Create a copy of the chart as an image for slides.
People Also Ask
What data format should I use for bar charts in Excel?
Bar charts in Excel work best with a simple, two-column format: a category column and a value column. If you have multiple series, place each series in its own adjacent column. Keep headers concise and avoid blanks in the data range.
Use a two-column format with categories and values; add extra series in adjacent columns if needed.
Can I use a horizontal bar chart for long category names?
Yes. Horizontal bars can prevent label overlap when category names are long. You can switch directions in the Chart Type options and adjust the axis accordingly.
Yes, use horizontal bars when category names are long to avoid overlap.
How do I add data labels without clutter?
Enable data labels and place them strategically (above bars or outside end). You can show only major categories or use a data label format to reduce visual noise.
Turn on labels for key bars only to reduce clutter.
How can I ensure my chart scales correctly?
Set explicit minimum and maximum values, or use automatic scaling with a reasonable margin to avoid crowding and misinterpretation.
Set axis minimums and maximums to keep scale accurate.
Watch Video
The Essentials
- Plan data structure before charting
- Choose the right bar chart type for your data
- Label axes clearly and concisely
- Keep formatting simple for readability
- Save a reusable chart template for consistency
