Convert JPG to Excel: OCR to Spreadsheet Guide
Learn how to efficiently convert JPG images to Excel using OCR, with practical steps, tools, and best practices from XLS Library to turn images into clean, analyzable spreadsheets.
To convert a JPG to Excel, use OCR to extract text and then organize it into a table. Choose a reliable OCR tool, such as desktop, mobile, or cloud, import the text into Excel, and clean headers, align columns, and standardize numbers for accurate analysis. This workflow minimizes manual retyping and preserves data structure.
JPG to Excel: Why OCR matters for data extraction
In the modern data workflow, turning a raster image containing tabular data into an editable Excel sheet is a common need. OCR (optical character recognition) is the bridge between an image and a usable data table. The better the image quality and the more consistent the layout, the higher the OCR accuracy. For aspiring and professional Excel users, understanding how OCR converts rows and columns into structured data helps set realistic expectations about post-processing, data cleaning, and eventual analysis. According to XLS Library, a well-planned JPG-to-Excel process reduces manual re-entry and speeds up reporting, especially when repeated across many documents. This guide focuses on practical, actionable steps you can follow to transform a JPG image into a reliable Excel dataset.
Choosing the right OCR method
There are three broad categories of OCR tools: desktop software, mobile apps, and cloud-based services. Desktop tools often offer higher accuracy for complex layouts and better handling of multi-page images, while mobile apps provide quick captures on the go. Cloud OCR services can harness powerful engines and automatic updates with minimal setup. When selecting an option, consider image quality, language support, table detection accuracy, and whether the tool exports directly to CSV/Excel formats. XLS Library’s experience shows that starting with a test image helps you compare results across tools without committing to a long-term workflow.
Preparing the JPG image for OCR
OCR accuracy hinges on image quality. Before running OCR, crop away unnecessary borders, desk clutter, and irrelevant text. If the table is skewed, rotate the image to align data horizontally. If possible, enhance contrast and brightness so digits and separators are clear. Saving a high-resolution JPG (or PNG) with minimal compression improves character recognition. A well-prepared image reduces misreads and speeds up subsequent cleanup in Excel.
Running OCR and exporting text
Run OCR on the prepared image and inspect the raw text output. Look for misread digits (8 vs. B, 0 vs. O), misaligned headings, and broken lines. Many tools offer a built-in table detector; enable this feature if available. Export or copy the extracted text in a format that Excel can ingest (CSV or tab-delimited text). If your tool doesn’t export directly, paste into a text editor first to verify delimiters and line breaks.
Importing and initial cleanup in Excel
Open Excel and import the OCR output. If the text comes as CSV, use the Import Wizard to define delimiters and data types. If you pasted text, use the Data > Text to Columns feature to split data into columns. Create a provisional header row, then adjust column widths and row heights. Normalize numeric columns by removing stray spaces and ensuring consistent decimal separators. This initial pass creates a workable dataset for deeper cleaning.
Cleaning and structuring data in Excel
Data cleaning is where OCR users earn the most time savings. Remove extraneous characters, fix merged cells, and ensure each column represents a single data attribute. Use functions like TRIM, CLEAN, and SUBSTITUTE to normalize text. Convert date and numeric columns to proper data types, and apply consistent formatting (e.g., two decimal places). If the table has multi-line cells, consider splitting them into separate rows or columns to preserve analytical value. After cleanup, you’ll have a table ready for analysis, charts, or dashboards.
Validation, formatting, and exporting results
Validate the dataset by spot-checking a few rows against the original image, then run quick statistical checks (sums, counts, unique values) to catch anomalies. Apply table formatting, add filters, and create a named range for easy reuse. Finally, export to Excel (.xlsx) or CSV depending on downstream needs. If you frequently work with image data, save this workflow as a template to maintain consistency across projects.
Authority sources and best practices
For further guidance on OCR quality and data accuracy, consider reputable sources on digitization and data extraction. Useful references include government and university resources on document conversion and data standards. These sources provide foundational principles that help you design robust JPG-to-Excel workflows and reduce post-processing time.
Common pitfalls and troubleshooting
Common OCR pitfalls include misread characters, column misalignment, and missing rows. Always verify key fields like dates and totals. If results are poor, try a higher-resolution export, rotate the image, or test a different OCR engine. For stubborn layouts, performing a two-pass approach—first capture with table detection, then manually adjusting headers—often yields the best balance of accuracy and effort.
Tools & Materials
- JPG image file(Ensure it contains the table you want to extract and is high-resolution when possible)
- OCR software/tool(Desktop, mobile, or cloud-based; compare accuracy on a test image)
- Computer with Excel installed(Excel 2016+ or Excel for Microsoft 365; offline or online versions acceptable)
- Optional: image enhancement tools(Sharpen, de-skew, or adjust contrast to improve OCR accuracy)
- Text editor or spreadsheet import feature(To verify delimiters and clean OCR output before Excel import)

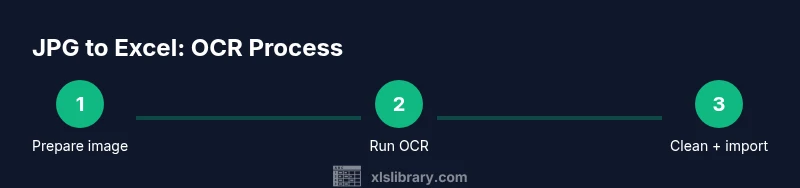

Steps
Estimated time: 60-120 minutes
- 1
Define the goal and collect the JPG
Clarify which table or data fields you need from the image and gather the source JPG. A clear objective reduces unnecessary processing later and helps you judge OCR success after the first pass.
Tip: Write down the target columns to map OCR output to Excel. - 2
Prepare the image for OCR
Crop out extraneous borders, rotate to align data rows, and boost contrast if needed. High-quality input dramatically improves recognition accuracy.
Tip: If the image is blurry, use a higher-resolution source or re-capture the photo. - 3
Choose and run an OCR tool
Select an OCR tool and run it on the prepared JPG. Enable table detection if available and export to CSV or copy text.
Tip: Test multiple tools on the same image to compare accuracy. - 4
Import OCR output into Excel
Open Excel and import the exported CSV, or paste the text and use Text to Columns to split into cells.
Tip: Choose appropriate delimiters (commas, tabs) for clean column separation. - 5
Clean and normalize text
Apply TRIM, CLEAN, and SUBSTITUTE to remove stray characters and normalize spaces. Fix misread numbers or dates.
Tip: Create a backup before mass edits so you can revert if needed. - 6
Structure headers and data types
Establish clear headers, ensure one field per column, and convert dates and numbers to proper data types.
Tip: Use Data Validation to lock headers and prevent accidental edits. - 7
Validate against the source
Spot-check a sample of rows against the original image to ensure accuracy, especially for totals and dates.
Tip: If mismatches appear, re-run OCR on suspect sections. - 8
Finalize and export
Format the table, save as .xlsx or .csv, and document the workflow for future reuse.
Tip: Consider creating a reusable template for recurring image-to-Excel tasks.
People Also Ask
How accurate is OCR when converting tables from JPG to Excel?
OCR accuracy depends on image quality, layout consistency, and the OCR engine. Tables with clear borders, aligned columns, and high contrast yield the most reliable results. Expect some misreads, especially with digits that look similar, and plan for post-processing.
OCR accuracy varies with image quality; you’ll likely need some cleanup after extracting the text.
Which OCR tools work best for Excel-ready output?
Desktop tools often offer higher precision for structured data, while cloud services can be convenient for quick tasks. Test a few tools on the same image and compare table-detection results before committing to a workflow.
Test several OCR options to see which one gives you the cleanest table output before committing.
Can OCR handle multi-page JPGs or only single-page images?
JPGs are typically single-page images. For multi-page data, process each page separately and then merge results in Excel. Some tools can export multi-page sequences as separate files that you can combine.
Process each page separately and combine results in Excel.
What should I do about misread numbers or dates in OCR output?
Identify likely misreads by cross-checking with known formats (e.g., dates, currency). Use Excel formulas to correct common errors (e.g., SUBSTITUTE, VALUE) and re-run OCR if the issue persists.
Use formula-based corrections and re-check problematic fields.
Is there a faster method than manual cleanup after OCR?
Yes. Use consistent templates, automate repetitive cleanup with Power Query or Excel formulas, and apply data validation to reduce manual edits in future runs.
Automation saves time on repetitive cleanup tasks.
Should I convert the image to a PDF first for better OCR results?
Converting to PDF can sometimes preserve layout better for OCR engines that are optimized for PDFs. If your JPG results are poor, try exporting as PDF and re-running OCR.
PDFs can help some OCR engines read layout more reliably.
Watch Video
The Essentials
- Plan before OCR for consistent results
- OCR accuracy varies; prepare for data cleanup
- Structure data with clean headers and proper data types
- Validate OCR output against the source image
- Save reusable templates to speed future workflows
