Bar Code Scanner Excel: A Practical How-To Guide

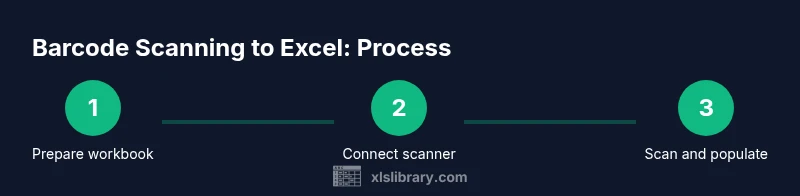

Understanding the bar code scanner excel workflow

A bar code scanner can be an incredibly efficient input device for Excel when used in a keyboard-wedge mode. In this setup, scanning a barcode is equivalent to typing the code on a keyboard and, typically, sending an enter or tab keystroke to move to the next field. The key is to design a lightweight but well-structured worksheet that captures essential attributes (barcode, item ID, description, quantity, location) and to ensure consistency across scans. From a practical perspective, Excel becomes a live data collection surface, not just a static ledger. According to XLS Library, framing the workflow around predictable data entry points helps reduce errors and speeds up routine tasks like inventory checks or asset tagging.

In addition to the raw barcode data, plan for post-scan processing. You may want to immediately look up item details, validate data formats, or route different barcode families to separate data streams. The bar code scanner excel workflow becomes a repeatable process when you start with a clean template and a predictable scan pattern.

This section sets the foundation: you’ll learn how to choose hardware, structure data, and align scanning with Excel’s built-in capabilities to minimize rework and maximize accuracy.

wordCountForBlock":null}

Hardware and software prerequisites

Before you begin, confirm you have the right hardware and software to support a reliable bar code scanner Excel workflow. You will typically need a barcode scanner (wired USB or Bluetooth), a computer or laptop with Excel installed, and a dedicated workbook or template that captures the scan data. The scanner should be configured to act as a HID (Human Interface Device) so it emulates keystrokes, and ideally send a post-scan delimiter (like a carriage return) to indicate the end of an entry. In practice, this means you can scan into the first data cell and rely on Excel to move to the next row automatically. The XLS Library team notes that a stable workspace reduces scan-friction and improves throughput during busy periods. Optional accessories, such as a stand or a labeling printer, can streamline workflows but are not strictly required for a basic setup.

Set up your Excel environment with a simple template that includes column headers for Barcode, Item ID, Description, Quantity, Location, and Timestamp. If you’re tracking time-based scans, consider appending a date/time column powered by Excel’s NOW() function. Finally, ensure your workbook is saved as a .xlsx file to preserve data validation rules and formatting.

wordCountForBlock":null}

Designing an Excel template for barcode data

A solid Excel template is the backbone of a reliable bar code scanner excel workflow. Start with a structured table that defines each data field you’ll capture. Recommended columns include Barcode, Item ID, Description, Category, Quantity, Location, and Timestamp. Use Excel Tables (Ctrl+T) to enable automatic expansion of the range as new scans arrive. Data validation should be added for critical fields like Quantity (whole numbers, non-negative) and Barcode (alphanumeric constraints or length checks). Sorting and filtering are easier when data lives in a table with consistent column order. The XLS Library approach emphasizes a single source of truth for scan data to prevent duplicates and misaligned records.

If you expect to join scanned data with product catalogs, prepare a lookup column that can pull in descriptions or pricing from a separate sheet or data source. Consider naming ranges (e.g., Barcodes, Descriptions) to simplify formulas and future automation. Finally, protect the header row to avoid accidental edits while keeping the data area fully editable.

wordCountForBlock":null}

Setting up the scanner as a keyboard input (HID)

Configuring the scanner as a keyboard input is the simplest, most reliable method for Excel users. In HID mode, the scanner types the barcode value into the active cell and usually appends a terminator keystroke. If your scanner can be configured, set the terminator to carriage return or tab to naturally advance to the next field or row. This behavior mimics typing and makes it compatible with standard Excel workflows without requiring middleware. Test with several barcodes of different lengths to confirm consistent results across sessions. The XLS Library guidance recommends keeping a consistent delimiter to ensure predictable row advancement and minimize misreads in busy environments.

For non-HID modes (e.g., serial), you’ll need small apps or add-ins to bridge scans into Excel. In most office setups, HID mode is the fastest path to an immediate, low-friction workflow.

wordCountForBlock":null}

Build data capture templates that scale

As your scanning volume grows, you’ll want templates that scale gracefully. Use a dedicated worksheet or tab for data capture, with a clear table structure and consistent column order. Enable filters and conditional formatting to highlight missing or invalid data in real time. Consider using named ranges for lookups and implement a simple daily archive to keep the active sheet lean and responsive. If you’re managing multiple locations or item types, create a separate sheet or a multi-table model that consolidates results for reporting. The XLS Library approach favors modular design over monolithic workbooks, making it easier to update fields or integrate with downstream systems over time.

For practitioners: keep a small, tested set of sample barcodes for verification and edge-case testing. Regularly back up templates to prevent data loss, and document any field-specific conventions (e.g., unit measurements, date formats) to ensure consistency across users.

wordCountForBlock":null}

Handling common barcode symbologies and formats

Barcodes come in many symbologies, from common one-dimensional codes to two-dimensional formats like QR codes. Excel itself can capture the raw data from scans, but you’ll want to align your data fields with the barcode type. For many office workflows, 1D codes (like Code 128 or UPC) are sufficient and scan reliably with basic equipment. If you anticipate using 2D barcodes, ensure your scanner and workbook can handle longer alphanumeric strings and potential order of scan results. Avoid mixing barcode formats in the same column without clear validation rules. The XLS Library guidance suggests mapping each barcode type to a dedicated field or using a parsing step to extract relevant segments (e.g., product ID, batch number) after scanning.

When deploying in inventory contexts, consider adding a quick check layer that validates lengths, prefixes, or check digits to catch misreads early. This proactive approach reduces the need for manual correction after each scan and keeps data clean for downstream analysis.

wordCountForBlock":null}

Data validation, error handling, and cleanliness

Data integrity is essential when bar code scans populate Excel records. Start with strong data validation rules: enforce non-empty Barcode values, ensure Quantity is non-negative, and require a valid Location from a predefined list. Use drop-down lists (data validation) for limited fields to minimize input errors. Implement conditional formatting to highlight anomalies (e.g., negative quantities or missing IDs) so they’re obvious at a glance. Create a simple post-scan check that flags potential duplicates by comparing the current Barcode against existing records in the table. The XLS Library approach encourages validating data as close to the point of entry as possible, which reduces cleanup time later.

Consider a lightweight data-cleaning routine: remove leading/trailing spaces, standardize case, and trim non-printable characters. If you store historical scans, keep an archive and periodically de-duplicate using Excel’s Remove Duplicates feature or a small query to identify repeats.

wordCountForBlock":null}

Automating post-scan tasks with formulas

Automation helps turn raw scans into actionable data. Use XLOOKUP or VLOOKUP to fetch item names, categories, or prices from a master catalog. Leverage TODAY() or NOW() for timestamps, and build a simple reconciliation column that compares scanned barcodes against a target list. If your data grows complex, consider Power Query to import, clean, and shape barcode data from multiple sources before loading it into Excel tables. The XLS Library stance emphasizes building maintainable formulas and documenting each step to enable long-term maintenance and scale.

To keep formulas readable, break complex logic into helper columns or named ranges. Regularly audit formulas for changes in the source catalog and update ranges accordingly. Finally, protect critical formulas to prevent accidental edits while keeping data-entry cells freely editable for scanners.

wordCountForBlock":null}

Real-world workflow: inventory check and restock

This section brings the concepts into a practical scenario. Imagine a warehouse floor where workers scan items to log stock levels. Each scan fills a row with the barcode, item name, current quantity, and location. A supervisor can review the sheet to identify low-stock items and trigger a restock process. In Excel terms, you might create a simple dashboard that filters for low-quantity items and highlights overdue restocks. The XLS Library recommendation is to pair scanning with lightweight automation: use a Lookup to bring in item details, a threshold-based rule for restock alerts, and a summary table for quick decision-making.

By combining reliable hardware with a clean template and clear data rules, you can transform daily scans into timely insights without specialized software. This approach is accessible to both aspiring Excel users and seasoned analysts who want a pragmatic, cost-effective solution.

wordCountForBlock":null}

Troubleshooting and performance tips

Even well-planned workflows encounter snags. Common issues include misreads, stray keystrokes, or a stalled Excel workbook when scans arrive faster than the sheet can process. Start with the basics: verify the scanner’s terminator is correctly configured, confirm the active cell is the correct target before scanning, and ensure the workbook isn’t in Protected View or Read-Only mode. For performance, keep the template lean, avoid heavy formulas in the data area, and use Excel’s Table structure to allow smooth expansion. If duplicates occur, implement a simple compare-and-flag mechanism and consider an occasional cleanup pass. The XLS Library guidance emphasizes iterative testing and user feedback to dial in reliability over time.

wordCountForBlock":null}

Next steps and learning resources

With the fundamentals in place, you can extend the bar code scanner excel workflow to more advanced tasks. Consider building a small validation add-in, automating daily exports to CSV, or linking scans to an external data source for live inventory counts. Practice using a representative barcode dataset and gradually add features like batch scanning, timestamping, or location-based reporting. For continued learning, explore Excel’s data tools, including Power Query and dynamic arrays, and consult authoritative resources from universities and government portals for best practices in data handling. The XLS Library team encourages ongoing experimentation and sharing of templates to help other users adopt barcode scanning workflows confidently.

If you want to dive deeper, search for tutorials on “barcode scanner Excel tutorial” and check curated XLS Library resources for templates and example datasets. Remember: the best setup balances simplicity, accuracy, and scalability while remaining approachable for everyday Excel users.
