How to Insert Tick Boxes in Excel

Understanding tick boxes in Excel

Tick boxes in Excel are small interactive controls that you can check or uncheck to mark items as complete. They enable task tracking, checklists, and dynamic dashboards when linked to worksheet cells. According to XLS Library, using checkboxes helps create user-friendly forms and lightweight interactivity without VBA. This makes it easier for both aspiring and professional Excel users to organize projects, assign responsibilities, and visually signal progress at a glance.

In practice, a single checkbox is more than a binary yes or no switch. When you connect a checkbox to a cell, Excel stores TRUE when the box is checked and FALSE when it isn't. That simple boolean output can drive formulas, conditional formatting, and dashboard visuals. Understanding the behavior of tick boxes in Excel empowers you to turn static lists into interactive workflows. In this guide, you’ll learn the main methods for adding checkboxes, how to link them to cells, how to copy them across a sheet, and common pitfalls to avoid.

When to use checkboxes

Check boxes are particularly useful in task lists, project trackers, inventory checklists, and QA sheets. They give end users a direct, tactile way to indicate completion without typing. When linked to a cell, a checked box returns TRUE and an unchecked box returns FALSE, which you can feed into formulas, dashboards, or conditional formatting. For teams collaborating in Excel workbooks, checkboxes help everyone see at a glance which items are done and which require attention. If you’re building an interactive sheet for data entry, allow a checkbox column to control dependent calculations or to trigger conditional color rules. The XLS Library team found that approachable controls like these reduce the cognitive load for readers and improve task traceability in busy spreadsheets.

Methods to insert tick boxes in Excel

Excel provides a couple of reliable routes to tick boxes. The most common is the Form Controls checkbox, accessed via the Developer tab. This method creates a true interactive control that you can check, uncheck, and even customize with a caption. For a lightweight alternative that doesn’t require Developer access, you can emulate a tick box with Data Validation by using a yes/no list and displaying a tick symbol with a formula. Both approaches integrate smoothly with standard Excel functions like IF, COUNTIF, and SUMPRODUCT, so you can incorporate checkboxes into totals, alerts, and dashboards. The choice depends on your environment: Windows users typically leverage Form Controls for full interactivity, while Mac users or shared workbooks may prefer the Data Validation route to maximize compatibility. Throughout this guide, we focus on reliable methods that work in 2026 and align with best practices from XLS Library resources.

Step-by-step: Planning the placement and links

Step-by-step planning helps prevent misalignment later. Start by deciding which column will host the checkboxes and which column will display the linked results. If you’ll use a formula to summarize progress, ensure each checkbox has a dedicated linked cell. Sketch a rough plan on paper or in a scratch sheet; this helps you avoid accidental overlaps when you begin inserting controls. Finally, verify you have or can enable the Developer tab, because most checkbox insertions require access to that feature. This planning phase is often overlooked, but it saves time and reduces errors when you scale the checklist across dozens of rows.

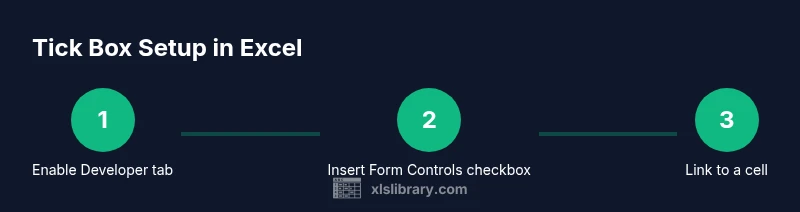

Step-by-step: Insert a Form Controls checkbox (Windows or Mac with Developer tab)

To insert a Form Controls checkbox, open the Developer tab, choose Insert, and select the Checkbox under Form Controls. Click on the worksheet where you want the box, and Excel will place a default label next to it. If the label gets in the way, right-click the control and edit the caption to blank. Now you can drag to move, resize, and align the checkbox with the cell you intend to link. This form control behaves as a true input and provides a direct boolean result in the linked cell.

Step-by-step: Link the checkbox to a cell

Right-click the checkbox and choose Format Control. In the Control tab, set the Cell link to a specific cell. When you check the box, that cell shows TRUE; when you uncheck it, the cell shows FALSE. Place the linked cell adjacent to the checkbox or in a dedicated column for easy referencing. Test by checking and unchecking a few boxes to confirm the linked values reflect correctly in your formulas. Linking is essential for driving counts, totals, or conditional formatting based on user actions.

Step-by-step: Copy across a range of checkboxes

Select the checkbox, then use the fill handle or keyboard shortcuts to copy it to neighboring cells. Excel will copy both the control and its properties; however, each copy must link to a distinct cell if you want independent results. To simplify, create a single checkbox with the desired caption and formatting, copy it across a field, and then manually adjust the linked cells for each new checkbox. This approach is efficient for long lists, but double-check the linked cells after pasting to avoid miscounts in your summaries.

Step-by-step: Alternative method - Data Validation tick boxes (Yes/No with symbols)

When a workbook can’t use Developer tools, Data Validation offers a practical workaround. Create a Yes/No drop-down in the checkbox column using Data Validation. To display a visible tick, pair the dropdown with a separate display column that uses a simple IF statement and a tick symbol: for example, IF(A2="Yes","✓"," "). You can use conditional formatting to color the display or show a red cross for the negative state. This method doesn’t produce a true form control, but it yields a clean, keyboard-friendly solution that works reliably in Excel Online and older desktop versions. The trade-off is that you lose the native checkbox interaction, but for many tasks, a clear tick symbol is perfectly adequate.

Step-by-step: Final checks and template reuse

Test your setup across the entire range, then save as a template if you’ll reuse this checklist often. Confirm that all linked cells respond correctly to each tick and that any formulas or dashboards update as intended. Document the method you used (Form Controls vs Data Validation) so teammates understand how to maintain or modify the sheet in the future. Saving a clear template reduces setup time for future projects and promotes consistency across workbooks.
