Excel Yes/No Checkbox: A Practical Step-by-Step Guide
Learn how to add a yes/no checkbox in Excel using Form Controls or data validation, link it to cells, and build interactive dashboards with conditional formatting. Practical tips for aspiring and professional Excel users from XLS Library.
Goal: create an interactive yes/no checkbox in Excel that outputs a binary result (TRUE/FALSE) you can reference in formulas, charts, or conditional formatting. You will insert a form control checkbox, link it to a cell, and optionally validate input with data validation for Yes/No display. This enables compact, repeatable data capture.
Understanding the yes/no checkbox in Excel
According to XLS Library, a yes/no checkbox in Excel is a binary control that lets users indicate a choice with a single click. When used as a form control, the checkbox writes a TRUE or FALSE value to a linked cell. If you prefer a more human-friendly display, you can convert that TRUE/FALSE result into Yes/No with a simple formula. This approach is widely used in dashboards, task lists, surveys, and wherever binary input improves data quality. The XLS Library team emphasizes practical, approachable guidance, so you can implement this quickly without needing macros or complex scripts.
Prepare your workbook and enable the Developer tab
Before you can insert a checkbox, you need access to Excel’s Form Controls. Start by ensuring your workbook is saved and that you have a clear area to place controls. Enable the Developer tab if it’s not visible: File > Options > Customize Ribbon, then check Developer. The Developer tab hosts all Form Controls you’ll use for binary inputs. With the tab visible, you’re ready to insert your first checkbox and begin linking it to a cell.
Insert and place a Form Controls checkbox
From Developer > Insert > Form Controls, choose the Checkbox option and click on the worksheet to place it. Resize as needed so it aligns with your data. For multiple checkboxes, place them in a dedicated column next to related data. Note that each checkbox carries its own caption by default; you can edit or remove the label to keep a clean layout. Pro tip: align checkboxes to gridlines for a tidy dashboard.
tip:
Tools & Materials
- Excel (Office 365 / Office 2019/2021)(Latest update recommended for form controls compatibility.)
- Developer tab(Enable from File > Options > Customize Ribbon if not visible.)
- Form Controls checkbox(Found under Developer > Insert > Form Controls.)
- Linked cell in worksheet(Each checkbox links to a separate cell to capture TRUE/FALSE.)
- Optional: Yes/No data validation list(If you want a dropdown alternative for records.)
Steps
Estimated time: 40-60 minutes
- 1
Enable the Developer tab
Open Excel options and enable the Developer tab to access Form Controls. This is the prerequisite so you can insert and customize checkboxes.
Tip: If the Developer tab is hidden, right-click the ribbon area and choose Customize Ribbon to reveal it. - 2
Insert a Form Control checkbox
Navigate to Developer > Insert > Form Controls > Checkbox, then click on the sheet where you want the control to appear.
Tip: Click and drag to draw the checkbox; you can adjust the size after placement. - 3
Size and place the checkbox
Resize the checkbox to align with the data cell it represents and position it in a dedicated column for consistency.
Tip: Hold Alt while resizing to snap to grid lines for precise alignment. - 4
Link the checkbox to a cell
Right-click the checkbox, choose Format Control, go to the Control tab, and set Cell link to a target cell.
Tip: Use a unique link cell per checkbox to avoid cross-wiring results. - 5
Convert TRUE/FALSE to Yes/No
In a neighboring cell, use a formula like =IF(A2, "Yes", "No") to display a friendly label.
Tip: Copy the formula down to apply to a whole column. - 6
Copy checkboxes for multiple rows
Select the checkbox, copy, and paste in adjacent rows; ensure each copied checkbox links to its corresponding cell if needed.
Tip: Double-check each linked cell after copying to prevent misalignment. - 7
Apply conditional formatting
Add rules to visually distinguish checked vs unchecked states, such as background color or icon indicators.
Tip: Use a rule like =A2=TRUE to apply formatting only when checked. - 8
Test and troubleshoot
Click each checkbox to verify the linked cell updates TRUE/FALSE, and the Yes/No display reflects correctly.
Tip: If values don’t update, re-check the linked cell path and ensure the correct cell reference.
People Also Ask
Can I have multiple checkboxes linked to one row?
Yes, you can place several checkboxes in the same row, each linked to its own cell. Be mindful of formula overlaps and ensure each checkbox state feeds the correct column. This keeps data interpretation clear and avoids cross-state errors.
Yes, you can have multiple checkboxes in one row, each with its own linked cell to track independent binary states.
How do I show Yes/No instead of TRUE/FALSE?
Use a simple IF formula in a neighboring cell: =IF(A2, "Yes", "No"). Copy the formula down to apply to other rows. This keeps your data readable while preserving the underlying binary state.
Use an IF formula to translate TRUE or FALSE into Yes or No for readability.
Do checkboxes work in Excel for Mac?
Yes. Checkboxes are available via the Developer tab on Excel for Mac, though the exact steps may vary slightly between Mac and Windows interfaces. Ensure the Developer tab is enabled to access Form Controls.
Yes, they work on Mac as well, with similar steps to enable and insert.
Is there a limit to how many checkboxes I can insert?
Microsoft Excel doesn’t publish a strict checkbox limit, but practical limits come from performance and workbook size. In most workbooks, hundreds of checkboxes can be managed effectively if linked cells are organized and formulas are efficient.
There’s no hard limit, but performance considerations apply with very large numbers of checkboxes.
Can I use checkboxes in data validation lists?
Checkbox controls and data validation serve different purposes. Use checkboxes for binary states and linked cells; use data validation for restricted text, numbers, or Yes/No values in a drop-down. You can combine both for robust data input.
They’re complementary: use checkboxes for binary states and data validation for lists.
How do I remove a checkbox from the sheet?
Right-click the checkbox and choose Cut or press Delete. If you don’t see the direct option, select the control and press Delete while the Design Mode is active on the Developer tab.
Select the checkbox and delete it, or cut it from the sheet.
Watch Video

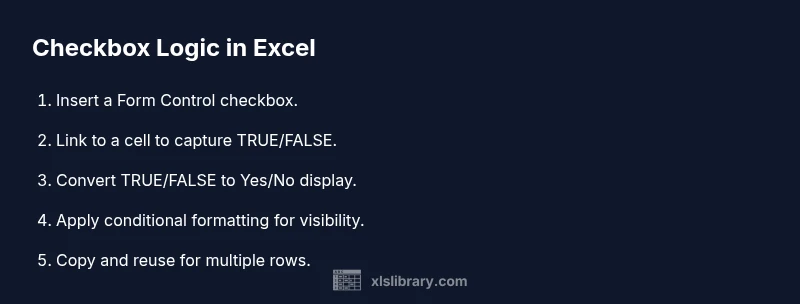

The Essentials
- Use a Form Control checkbox for binary Excel inputs
- Link each checkbox to a dedicated cell to drive formulas
- Convert TRUE/FALSE to Yes/No for user-friendly displays
- Apply conditional formatting to highlight checked items
- Scale checkboxes across many rows for dashboards
- Keep your workbook organized with consistent naming and clear documentation
