Change XML to Excel: Practical Guide Using PowerQuery

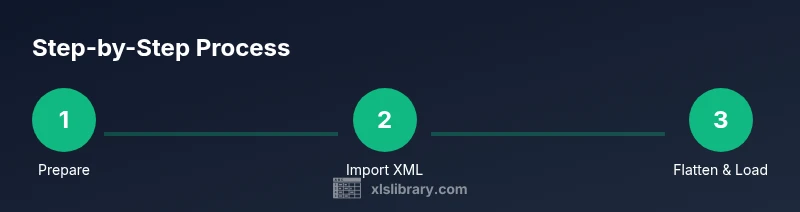

Understanding the XML-to-Excel workflow

Converting XML data into a usable Excel format is a common requirement for analysts who need to perform analyses in familiar tools without losing the structure of the source data. The general workflow centers on bringing XML into Excel via Power Query (Get & Transform), interpreting the hierarchical XML into relational tables, and then shaping those tables for reporting. In this context, you’re not just “copying” data; you’re mapping XML elements and attributes to a tabular schema that Excel can manipulate with formulas, charts, and dashboards. According to XLS Library, adopting a deliberate workflow reduces redundancy and error-prone manual edits. A well-planned import makes it easier to refresh data from source XML feeds, compare periods, and reuse the same mapping across similar XML documents.

Key concepts you’ll use include: the XML hierarchy, elements versus attributes, and the concept of “tables” derived from nested branches. If your XML has namespaces, you’ll need to decide how to map those into your Excel columns. The goal is to arrive at clean, columnar data that can be loaded into a worksheet or model for further analysis.

Preparing XML and Excel for Import

Before you start the import, ensure your environment is ready. Use well-formed XML with a single root element whenever possible; inconsistencies in root nodes can complicate mapping. If you’re dealing with large files, consider splitting the XML into chunks or using incremental loading strategies. In Excel, confirm you’re on a version with Power Query (Get & Transform) features—ideally Excel 2016+ or Microsoft 365. Create a dedicated workbook for the transformation so your raw XML stays intact and you can refresh outputs without breaking your analysis. Organization matters: keep the XML files in a clearly named folder and establish a conventional naming scheme for the resulting Excel workbooks. Finally, have a basic plan for how you want the resulting tables to appear (which elements map to which columns) to minimize late-stage rework.

Importing XML with Power Query

In Excel, start by opening a blank workbook and navigating to Data > Get Data > From File > From XML (if available in your version). Power Query will present a Navigator pane showing the XML structure. Select the top-level elements you want to convert into tables, or load the entire structure as a set of related queries. When you click Load, choose whether to load as a table or to only create a connection for later reshaping. If your Excel version does not show From XML, you can still import XML by using the XML Source approach or pre-processing the XML to reduce nesting, then loading via Power Query. Remember to review the applied steps in the Power Query Editor to ensure the import aligns with your planned mapping.

Transforming and Flattening XML into Tables

XML is hierarchical, which means you’ll typically see nested tables and repeated elements. The Power Query Editor lets you expand columns to flatten these hierarchies. Use the Expand button on a column to bring in child elements as new columns, then remove unused columns and rename the resulting fields for clarity. It’s common to perform type conversion (e.g., text to date or number), split combined fields, and create calculated columns to improve downstream reporting. If you encounter multi-level nesting, you may need to create intermediate queries that pivot nested data into a single flat table suitable for your model. Consistency in column names across facts makes later joins, filters, and pivoting far easier.

Handling Namespaces and Attributes

Namespaces can complicate XML imports because Power Query may treat namespaced elements as distinct from non-namespaced ones. If your XML uses namespaces, you can either remove the namespaces during preprocessing or map them in Power Query using M code to normalize element names. Attributes are another common source of confusion: they often appear in a separate column or as part of an element. Decide whether attributes should become separate columns or be concatenated with the element value. A clean approach is to create a mapping rule: element names map to column headers, while attributes map to additional columns with a consistent naming convention. This keeps the resulting dataset predictable for analysts and BI tools.

Troubleshooting Common Issues

Importing XML can fail for several reasons: malformed XML, mismatched namespaces, or overly deep nesting can impede import. If Power Query shows a navigation or parsing error, validate the XML with an XML validator or schema (XSD) when available. Large files may exhaust memory in Excel; consider chunking the data or increasing the machine’s memory where possible. If the data loads but contains missing values, revisit your mapping rules and ensure that every required element has a corresponding column. Finally, ensure you refresh your queries after source XML changes, and maintain a versioned export to avoid surprises in live dashboards.

Real-World Scenario: XML to Monthly Sales Report

Imagine XML data that contains monthly sales records from multiple regions and product lines. You’d map each Region, Month, Product, and SalesAmount to separate columns, expand nested items like RegionDetails, and create a date column from the Month field. With Power Query, you can refresh the workbook each month, automatically update the sales table, and preserve a historical view for trending analyses. By keeping a stable mapping and clean transformation steps, you enable repeatable reporting that scales with your data volume.

AUTHORITY SOURCES

For deeper reading, consult authoritative references on XML and Power Query:

• https://www.w3.org/TR/xml/
• https://docs.microsoft.com/en-us/power-query/power-query-reference
• https://docs.microsoft.com/en-us/power-query/connectors/xml

These sources provide standardized guidance on XML syntax and the Power Query approach to data connectivity and transformation.
