Excel Power Query: A Practical Masterclass for Data Prep

What is Power Query and where it fits in Excel

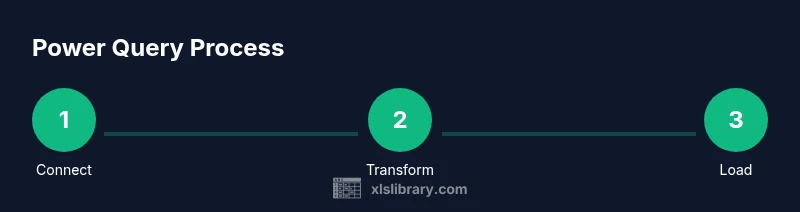

Power Query is the data connectivity and transformation engine built into Excel. It enables you to pull data from multiple sources, shape it with a user-friendly interface, and load the results back into a worksheet, a table, or the data model. The engine behind the scenes is the M language, but most users interact through a guided GUI that feels familiar to Excel power users. According to XLS Library, Power Query should be viewed as an ETL tool that lives inside Excel, not as a standalone program; it ensures repeatable steps so you can reproduce results with new data. When you connect to a source, you can preview the data, decide which columns to keep, and design a sequence of transformations that will run every time you refresh. This modular approach helps teams avoid manual data wrangling and reduces human error by turning ad hoc edits into repeatable processes.

Why Power Query matters for data prep

In data-rich environments, Power Query saves time by automating repetitive cleaning and shaping tasks. Instead of opening a file, editing columns, and reformatting values by hand, you build a query that can be refreshed with a single click. This reproducibility is critical for audits and collaboration, as teammates can reuse the same steps on new data without re-creating logic. Power Query also helps enforce data governance because the transformations live in a single, auditable query, not scattered across Excel sheets. As datasets grow larger, the ability to filter, group, merge, and cleanse within Power Query keeps Excel responsive and minimizes manual errors that creep in during multi-step ETL workflows.

Accessing Power Query Editor

To start, open Excel and go to the Data tab. Click Get Data > Launch Power Query Editor to open the editor window. From here you can connect to data sources, browse tables, and begin forming a query. Each data source has its own set of options and authentication requirements. As you connect, the Preview pane shows how the data will appear after your transformations. Use Apply Steps to lock in changes and track what you did at every stage. The editor is designed to be forgiving for beginners while offering advanced capabilities for power users, making it a flexible entry point into data prep in Excel.

The Power Query Editor interface

The Power Query Editor presents several key areas: the Preview pane shows current data, the Query Settings pane tracks applied steps, and the Formula Bar (when enabled) reveals the M code behind each action. The left pane lists all queries in the current workbook, allowing you to branch and reference queries as needed. In the ribbon, you’ll find commands for common transformations such as Remove Columns, Split Column, Group By, Merge Queries, and Append Queries. The Applied Steps section records every change in a stepwise, chronological order, making it easy to revert or adjust specific actions. With practice, you will rely on the right-click context menu to quickly duplicate, reference, or rename queries for better organization.

Data sources and connectors you can use

Power Query supports a wide range of connectors, including Excel workbooks, CSV and text files, Web data, SQL Server, Access, SharePoint, OData feeds, and many more. Some connectors require credentials or tokens, others pull data anonymously. When you connect to a source, you can shape the data as it is loaded into the editor. You can also combine data from different sources by merging or appending queries. As you assemble data from multiple sources, keep privacy levels in mind to prevent data from unintended sources from crossing boundaries during a merge.

Transformations you can perform in Power Query

Power Query provides an extensive set of transformations. You can filter rows, sort, rename or reorder columns, replace values, and cast data types. You can split and merge columns, pivot and unpivot data, group rows to compute aggregates, and fill down missing values. The user interface guides you through these actions visually, while the underlying M code captures each step. For advanced users, the Advanced Editor reveals the full M syntax, enabling custom logic and repeatable templates for complex ETL scenarios.

A practical example: cleaning a messy dataset

Imagine you receive a sales file with mixed data types, extra spaces, and inconsistent date formats. Start by removing irrelevant columns, then trim text fields and standardize case. Change data types to date, number, and text as appropriate. Filter out rows with missing or invalid values, and use split or parse functions to normalize complex identifiers. Finally, rename columns to clear names, apply a consistent format across the dataset, and load the cleaned table to the worksheet or the data model for analysis.

Advanced techniques: merging and appending queries

Merging and appending are powerful ways to combine data from related sources. Use Merge Queries to perform left, right, or full outer joins, choosing the correct join kind to preserve the data relationships you need. Append Queries adds rows from multiple tables with the same structure, forming a longer table. When you merge, you often create a new column that contains related data from another query; when you append, you extend the current table with new rows. Both techniques are essential for building a unified dataset from diverse sources.

Data loading options and refresh behavior

After you finish transforming data, you can load it back into Excel in different ways. Load to a worksheet or as a table inside the workbook, or load to the Data Model for deeper analytics with Power Pivot. You can choose to create a connection only, which keeps the data out of the worksheet but ready for future refreshes. Refresh settings let you specify when and how data updates, such as on workbook open or on demand. If you work with external sources, review privacy levels and credentials to ensure secure refresh operations.

Best practices for Power Query projects

Start with a clear naming convention for queries and steps, then document the purpose and inputs for each query. Keep transformations modular so you can reuse them in other projects. Make use of descriptive step names and reference other queries to reduce duplication. Periodically review performance, especially with large data sources, and consider loading only what you need into the workbook. Keep a changelog and share a documented process with teammates to enhance collaboration and reproducibility.

Troubleshooting common issues

Common issues include formula firewall errors when merging across data sources, privacy level conflicts during merges, and data type errors after loading. When you encounter a problem, review the Applied Steps, verify source credentials, and check the data preview to locate where the mismatch began. If a step fails, try removing it or reordering steps. Review privacy settings and test with a smaller data sample to isolate the cause.

Quick-start checklist you can reuse

• Define objective and expected output
• Open Power Query Editor and connect to a data source
• Remove unnecessary columns and fix data types
• Clean and normalize text values
• Filter, deduplicate, and validate data quality
• Merge or append when dealing with multiple sources
• Load to worksheet or data model and set refresh
• Document steps and save the workbook
