Import Excel Tables into AutoCAD: A Practical Guide
Learn how to bring an Excel table into AutoCAD using copy-paste, Data Link, or CSV import. This practical guide covers setup, formatting, and keeping data synchronized.
You will learn how to bring an Excel table into AutoCAD using three practical approaches—copy-paste, a live Data Link, or a CSV import. Each method preserves content and can be formatted for CAD legibility. Use this quick guide to pick the best option, prepare clean data in Excel, and ensure reliable results in your drawings.
Why bringing Excel data into AutoCAD matters
Excel is the lingua franca for data in many engineering and architectural workflows. Bringing an Excel table into AutoCAD lets you embed schedules, BOMs, and part lists directly in your CAD drawings, reducing duplication and errors. According to XLS Library, most teams experience improved accuracy and faster revisions when data stays connected to the drawing. The ability to link data or paste tables helps ensure that specifications and geometry stay aligned during design reviews. In this article you’ll understand the value of integrating Excel data into AutoCAD, how different import methods affect editing and updates, and what to expect in typical projects such as construction documentation, mechanical layouts, or architectural plans. If you’re looking for guidance on how to bring an excel table into autocad, this article breaks it into practical steps.
Preparing your Excel table for import
Before you move data into AutoCAD, clean and structure your Excel table for predictable results. Start with a single header row using concise labels (e.g., Part, Quantity, Material), remove merged cells, and ensure consistent data types in each column. If formulas exist, replace them with static values to avoid unexpected changes in CAD. Remove extraneous formatting that could misalign columns when pasted or imported. Finally, save a backup copy of the workbook and note the sheet name and cell range you intend to export or link to. These steps reduce surprises when you insert or link the table into AutoCAD and lay the groundwork for clean legends, bills of materials, or data-rich drawings. This planning phase is essential for a smooth import process and aligns with XLS Library’s emphasis on practical data readiness.
Method A: Quick paste from Excel to AutoCAD
Copy the desired range from Excel and switch to AutoCAD. Create a table or paste into an empty area to insert a new AutoCAD table; AutoCAD will interpret the clipboard data as a grid and format cells accordingly. After pasting, adjust column widths, text height, and alignment to ensure legibility on screen and on plot sheets. If the paste seems off, try copying smaller blocks or removing excessive formatting in Excel. This method is fast for small tables or one-off lists and works well for quick revisions during design reviews. For the best results, keep headers concise and avoid merged cells in the copied range, which can confuse the AutoCAD table layout.
Method B: Live data links with Excel Data Link
For ongoing projects, linking Excel to AutoCAD via a Data Link preserves a live connection between the spreadsheet and the CAD table. In AutoCAD, create a new data link to your workbook, select the sheet and range, and insert a linked table. The table will update when you refresh the link, keeping schedules and quantities synchronized with the source file. Remember to save the workbook in a stable location and manage relative vs. absolute paths if you share the drawing with others. Data links are ideal for evolving projects where your Excel data calibration is frequent and you want CAD to reflect changes automatically.
Method C: Import from CSV via Table From File
If you prefer a non-live import, export your Excel data as a CSV file and import it into AutoCAD using the Table command with the From File option. CSV imports preserve value text and simple formatting, though you won’t get automatic updates. When configuring the import, specify the target insertion point, number of rows and columns, and whether to auto-fit the table to the drawing scale. This approach is robust across different AutoCAD versions and avoids workbook-level links. If your Excel contains formulas or conditional formatting, ensure you export only the plain values to CSV.
Formatting and aligning the imported table in AutoCAD
After you insert or import the table, spend time on formatting to ensure readability in CAD drawings. Use a clear text height appropriate for your plot size, set consistent cell padding, and apply a CAD-friendly font. Keep decimal places consistent, set borders where needed, and align headers with the drawing grid for a clean legend. If you move the table, recheck alignment and snap to grid when necessary. Consider creating a simple style or layer for table text to maintain consistency across multiple sheets and drawings.
Best practices for working with Excel data in CAD projects
Establish a naming convention for exported CSVs or workbook links, maintain a central repository for data sources, and document the data flow from Excel to AutoCAD in project standards. Use data validation in Excel to prevent invalid inputs, and avoid embedding complex formulas in the table when printing CAD drawings. Regularly review data accuracy, especially for BOMs and quantities, and train team members on the chosen import method to minimize errors and rework. Keeping data provenance clear helps teams scale their CAD workflows across projects.
Handling updates and synchronization
If you chose Data Link, remember that updates require saving the Excel file and triggering a refresh in AutoCAD. Some workflows enable automatic refresh on drawing open; others require manual refresh. When updating, test the effect on the CAD table’s layout, and re-check alignment with dimensions and symbols. Always keep a version history of the Excel workbook and the AutoCAD drawing to facilitate rollback if a change creates inconsistencies. This discipline reduces rework and preserves the integrity of the drawing package.
Troubleshooting common import issues
Table import issues often relate to formatting differences between Excel and AutoCAD, such as merged cells, inconsistent data types, or oversized text. If data appears misaligned, re-create the table from scratch with a clean CSV or a fresh paste, and verify column headers match the intended positions. If links fail to update, check file paths and permissions, and confirm the AutoCAD version supports the chosen import method. Finally, plot previews can reveal readability problems that aren’t obvious on screen. By isolating one problem at a time and testing each method on a small sample, you can identify the optimal approach for your project.
Real-world examples and next steps
In practice, teams often use Excel for CSV-based inventories and AutoCAD for drawing annotations and bill of materials. A typical workflow might export a CSV from Excel, import it into a CAD drawing, format the table as a legend, and then lock the table to prevent accidental edits. For ongoing projects, set up a Data Link to maintain live sync with the Excel workbook. Experiment with small sample tables first, document the steps in your project standards, and iterate toward a reliable, repeatable method that fits your CAD environment and team skill level.
Tools & Materials
- Microsoft Excel(Create and format your table with clean headers.)
- AutoCAD(Open the target drawing and prepare to insert or link a table.)
- CSV export capability(Use when importing via Table From File method.)
- Clipboard (copy-paste buffer)(Option A: quick paste from Excel to AutoCAD.)
- Excel Data Link (XLSX)(Create a live link to enable automatic updates in AutoCAD.)

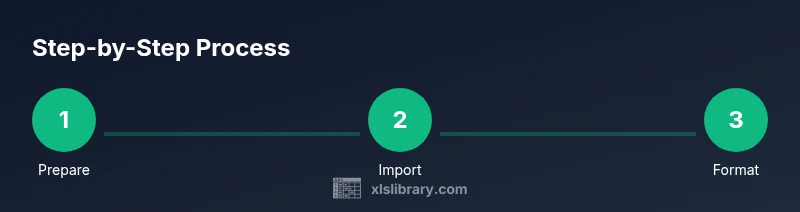

Steps
Estimated time: 40-60 minutes
- 1
Prepare Excel data
Clean and structure the table in Excel with a single header row, consistent data types, and no merged cells. This ensures the values paste or import cleanly into AutoCAD without misaligned columns.
Tip: Keep headers short (< 10 chars) to fit column widths in CAD. - 2
Choose an import method
Decide between copy-paste, Data Link, or CSV import based on update needs and project length. Live links are best for ongoing projects; static CSV imports are simpler for one-off sheets.
Tip: If updates are frequent, prefer Data Link and maintain a stable file path. - 3
Copy-paste to AutoCAD
Copy the Excel range, switch to AutoCAD, and paste into a blank area to create a table. Adjust cell widths and text height for legibility after insertion.
Tip: If formatting is off, paste in smaller chunks or paste as plain text first, then apply formatting. - 4
Set up a Data Link
In AutoCAD, create a new data link to the Excel workbook, select the sheet and range, and insert the linked table. Test the refresh to verify updates appear in CAD.
Tip: Store the workbook in a shared, stable location and monitor path changes when sharing files. - 5
Import from CSV
Export the Excel table as CSV and use Table > From File to bring it into AutoCAD. Define insertion point and ensure the table auto-fits to the drawing scale.
Tip: CSV imports avoid workbook dependencies and are portable across CAD versions. - 6
Format the AutoCAD table
Set a readable text height, adjust borders, and apply a consistent font. Align headers with the drawing grid to maintain a clean legend or schedule.
Tip: Create a table style on a dedicated layer to apply conventions quickly. - 7
Manage updates
If you used Data Link, save the Excel file and refresh in AutoCAD. Verify the layout after updates to avoid misaligned digits or headers.
Tip: Enable incremental saves to minimize data loss during refreshes. - 8
Document the workflow
Record the chosen method, data sources, and formatting standards in your project notes. Consistency reduces errors when sharing drawings with teammates.
Tip: Include a quick-start reference in the CAD template for new users.
People Also Ask
Can I paste Excel data directly into AutoCAD?
Yes. Pasting creates a new AutoCAD table from the copied Excel range. For best results, ensure the Excel range has clean headers and no merged cells, then adjust formatting in AutoCAD.
Yes. You can paste from Excel into AutoCAD to create a table, but keep headers clean and avoid merged cells for reliable formatting.
How do I link Excel data to AutoCAD for updates?
Use the Data Link feature in AutoCAD to connect to an Excel workbook. Insert a linked table, then refresh when the Excel file changes. Store the workbook in a stable location and manage the file path carefully.
Create a data link in AutoCAD to the Excel workbook, insert the linked table, and refresh to see updates.
What is the best method for large tables?
CSV import or Data Link tend to scale better for large tables than pasting. CSV imports avoid workbook dependencies, while Data Link maintains live updates.
For large tables, use CSV import or Data Link to keep things scalable and up-to-date.
Can I format the CAD table to match drawing styles?
Yes. After import, apply a consistent CAD font, text height, borders, and alignment. Create a dedicated table style and layer for repeat usage.
You can format the table to align with your CAD style by using a consistent font, height, and borders.
Will the live link update automatically on open?
Some workflows support automatic refresh on open, others require manual refresh. Check your AutoCAD version and data-link settings.
Auto updates may happen automatically, depending on your settings; otherwise, refresh manually.
What if the Excel file is moved or renamed?
You must update the data link path in AutoCAD or relocate the workbook to the expected folder. Broken links will prevent updates.
If the Excel file moves, update the path in AutoCAD to restore the link.
Are there security considerations when linking data?
Yes. Data links expose external files. Use restricted folders and follow your organization’s security policies for shared drawings.
Be mindful of external links and follow security policies when sharing CAD drawings.
Can I use formulas in the Excel table after import?
If you plan to keep a live link, avoid complex Excel formulas that depend on external data. Keep the linked range as static values when reliability is critical.
Limit formulas when using a live link; static values are safer for robust CAD drawings.
Watch Video
The Essentials
- Choose the import method based on update needs.
- Prepare clean, headered Excel data before import.
- Data Link offers dynamic synchronization with AutoCAD.
- Format tables for CAD legibility and consistency.
- Test imports with small samples before full deployment.
