How to Create a Chart from Excel Data

Understanding the basics of charts in Excel

Charts are visual stories that translate rows and columns of numbers into an interpretable image. A well-chosen chart highlights trends, comparisons, distributions, and relationships, making it easier for your audience to grasp complex data at a glance. According to XLS Library, effective charts start with clean data and a clear question. When you learn how to create a chart from Excel data, you gain a repeatable workflow for any dataset you encounter in 2026. Key ideas include matching chart type to data structure, ensuring axis labels are meaningful, and using consistent colors. In practice, you’ll want to keep your chart simple and focused on the insight you aim to communicate. This approach helps both new and experienced Excel users tell a more compelling data story while preserving accuracy and integrity.

• Visual storytelling matters: a chart should answer a question at a glance.
• Simplicity wins: avoid clutter that distracts from the core message.
• Accessibility counts: use legible fonts, contrasting colors, and clear labels.

As you start, remember that charts are tools—not ends in themselves. Your goal is to reveal patterns, not to decorate a workbook. The XLS Library team emphasizes clarity, not cleverness, as the foundation of great charts.

Before you start: prepare your data

Preparation is the most important step in creating a chart from Excel data. If the data is messy, the chart will mislead. Start with a clean, well-structured table: a single header row, no blank rows inside your data, and consistent data types in each column. Name columns intuitively (e.g., Year, Revenue, Region) and avoid mixing text and numbers in a single column. Create a small, representative sample to test your chart before scaling to the full dataset. In 2026, using named ranges or a structured table helps Excel automatically adjust when you add new data. It also improves formula references for any data series you plot. Remember to verify that dates are recognized as dates, numbers are numbers, and there are no stray characters that could throw off calculations.

• Convert data to a table (Ctrl+T) for automatic expansion.
• Use named ranges for readability in formulas.
• Check for outliers and formatting inconsistencies before charting.

Choosing the right chart type for your data

The chart type you select should reflect the story you want to tell. Here are common patterns and recommended types:

• Time series data (trend over time): Line or Area chart.
• Categories with one value per category: Column or Bar chart.
• Part-to-whole relationships: Donut or Pie chart (sparingly, and only when there are a few categories).
• Distributions and variability: Box plot or Histogram (Excel supports these in newer versions).
• Relationships between two quantitative variables: Scatter plot.

When selecting a chart, avoid over-adding series or series with very different scales, as this can confuse readers. If you’re unsure, start with a simple line chart for trends or a column chart for categorical comparisons. The goal is to match the chart to the data structure so viewers can interpret the visual quickly. In many cases, you’ll switch to a more sophisticated chart after validating the core insight with a simple version.

• Keep chart types aligned with data characteristics.
• For multi-series comparisons, consider a grouped column or a stacked variant.
• Always test readability on a smaller screen to ensure legibility.

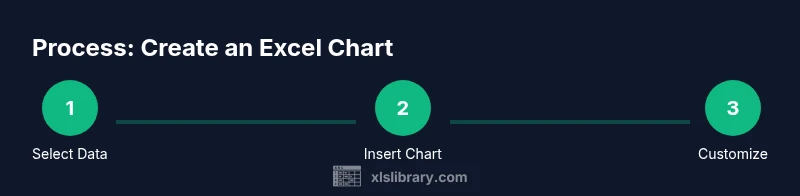

Step-by-step: create a chart from Excel data

This section provides a practical workflow you can follow in any modern Excel version. Remember to save your workbook before starting, so you can revert if needed. Use the following steps to transform your data into a chart:

1. Select the data range that includes headers and the data series you want to chart. Do not include totals unless you intend to show them in the chart. This initial selection sets the scope for your chart.

2. Navigate to the Insert tab and choose a chart type that best fits your data story. For beginners, a simple Column or Line chart is often a good starting point. Excel will insert a basic chart aligned to your data range.

3. If the chart isn’t displaying the exact data you expect, adjust the data source. Use Select Data to add or remove series, swap rows and columns, or rename series for clarity. This step ensures the chart reflects the right metrics.

4. Add or refine axes, legends, and titles. Ensure axis labels are descriptive (e.g., “Year” or “Revenue (USD thousands)”) and remove any unnecessary gridlines that clutter the view.

5. Consider formatting options. Apply a consistent color palette, choose readable fonts, and balance white space. Use chart styles for a quick visual refresh, but avoid overpowering the data with fancy effects.

6. Move or resize the chart as needed. If you have multiple charts on a sheet, align them to maintain a clean layout. You can also place the chart on its own sheet to isolate the visualization for presentation.

7. Save a chart template if you expect to reuse the same structure often. This saves time on future datasets and ensures consistency across reports.

Tip: If you’re working with large datasets, use the Excel Tables feature to make data dynamic. When you add new rows, your chart can automatically update if it’s based on a Table.

Customize your chart for clarity and impact

Once you have a working chart, you can tailor it to communicate more effectively. Focus on readability, not ornamentation, and align visuals with your audience. Here are practical customization steps:

• Update axis titles and chart title to clearly describe the data and the insight. Remove ambiguous labels.
• Use data labels sparingly for emphasis, such as highlighting a key value or a peak.
• Apply a color scheme with high contrast that matches your brand or presentation theme. Prefer a small number of colors across series to avoid confusion.
• Add a concise legend or, if space is tight, place series labels directly on data points where possible.
• Include a watermark or subtle gridlines only if they improve orientation without distracting.
• Enable data tooltips in interactive environments or Power BI/Excel Online to provide on-demand detail.

A well-customized chart should guide the eye to the core message without forcing the viewer to decode the data. The XLS Library approach emphasizes practical tweaks rather than stylistic excess.

Common pitfalls and how to fix them

Even experienced users run into chart mistakes. Here are frequent issues and fixes:

• Problem: Chart appears cluttered with too many series. Fix: Reduce the number of series, group them logically, or create multiple charts to tell distinct parts of the story.
• Problem: Incorrect scaling or misinterpreted axes. Fix: Check axis options, use secondary axes sparingly, and verify zero baselines when appropriate.
• Problem: Overuse of pie charts for many categories. Fix: Prefer bar or column charts for many categories; if you must use a pie, limit to a handful of slices and show percentages.
• Problem: Inconsistent data labeling. Fix: Ensure consistent units, decimals, and labeling across the chart.
• Problem: Poor color choices that hinder accessibility. Fix: Use color palettes with sufficient contrast and consider colorblind-safe schemes.

If you encounter a blank chart, verify data range, ensure there are visible data points, and check for hidden rows or columns. When charts don’t update after data changes, review the data source (range vs. Table) and ensure the chart is linked to the correct data.

Practical examples and case studies

To illustrate how these concepts apply, consider three practical scenarios:

• Sales trend over a year: A line chart highlights monthly growth and identifies periods of acceleration. Use a clean color and a bold axis title to emphasize the trend.
• Market share by region: A stacked column chart can reveal how each region contributes to total sales. Keep regional labels short and use a legend that stays visible.
• Product performance distribution: A histogram shows how sales are distributed across product categories, helping you spot outliers and concentration zones. Use bins carefully to avoid misinterpretation.

In each case, the chart serves as a quick reference, with the data story integrated into your slide or report. The goal is to enable decision-makers to grasp the key insight immediately and then consult the underlying data if needed.
