How to Plot Data on Excel: A Practical Guide
Learn how to plot data on Excel with step-by-step instructions, chart types, formatting tips, and best practices to visualize data clearly and accurately.
Learn to turn raw numbers into clear visuals by plotting data on Excel. This guide covers how to choose the right chart, prepare your data, and create and customize common chart types—from line charts to scatter plots—plus tips for accuracy and readability. No advanced software needed, just Excel and your data.
Why plotting data in Excel matters
Plotting data in Excel is about turning numbers into narratives. According to XLS Library, a well-crafted chart helps audiences see trends, compare categories, and spot outliers in seconds rather than scanning rows of numbers. For many professionals, Excel is the first and best tool for quick visualizations because it is ubiquitous, fast, and deeply integrated with the data you already hold. In this guide on how to plot data on Excel, we walk through choosing the right chart, preparing your data, and applying practical formatting so the end result communicates clearly. Whether you are preparing a quarterly report, tracking project metrics, or validating a hypothesis, a chart can compress complex data into insight you can act on. The approach we describe here emphasizes readability, accuracy, and reproducibility, so your visuals remain trustworthy across meetings and dashboards. By the end, you’ll know when to chart, what to chart, and how to present charts that support decisions.
Choosing the right chart for your data
Excel offers a range of charts, each suited to different storytelling goals. Line charts excel at showing trends over time, while column and bar charts compare values across categories. Scatter plots reveal relationships between two numerical variables, and pie charts illustrate composition. When you plot data on Excel, start by asking what question you want the chart to answer. If you want to compare groups, a column or bar chart may be best. If you want to track changes over time, pick a line chart. For relationships, a scatter plot provides the clearest view. Remember to consider audience and context; a chart that’s perfect for a dashboard might be too intricate for a quick email.
Preparing your data for plotting
Data preparation is the foundation of effective charts. Start with a clean, structured table: each column should have a single data type, the first row should be headers, and there should be no blank headline cells in the data range. Turn data into a named or formal table (Insert > Table) to enable dynamic ranges that adjust as data grows. Ensure numeric fields are stored as numbers, not text, and check for outliers that could distort your chart. If your data includes dates, use a consistent date format. When plotting, avoid mixing units within a single series. This careful preparation reduces chart errors and makes it easier to update visuals later.
Create a basic line chart: practical approach
To create a basic line chart, select the date column and the series you want to plot, then go to Insert > Charts > Line. Excel will generate a clean line chart with default axis labels. Add a chart title that reflects the question you’re answering, and label your axes clearly. If the date range is long, consider formatting the x-axis to show fewer tick marks to avoid clutter. You can customize line styles, colors, and markers to improve readability. This workflow demonstrates how to plot data on Excel quickly and build a foundation for more advanced visuals.
Create a column chart for category comparisons
Column charts are ideal for comparing values across categories. After selecting your category and value columns, choose Insert > Charts > Column. Excel creates a vertical bar chart that makes differences between groups immediately visible. Add data labels if precise values matter to your audience, and adjust the axis to start at zero if you want to emphasize proportional differences. If you have many small categories, consider a horizontal bar chart to maximize legibility. This approach is a staple for presenting survey results, quarterly results, or product performance.
Scatter plots: revealing relationships between variables
Scatter plots help you explore correlations or patterns between two numeric variables. Plot your X values (independent variable) and Y values (dependent variable) by selecting the two columns and choosing Insert > Charts > Scatter. Look for cluster patterns, outliers, or nonlinear relationships, and consider adding a trendline to quantify the relationship. Scatter plots often require adjusting the axis scales and adding data labels for key points. Use color or size to encode a third variable when appropriate to keep the chart informative without becoming overwhelming.
Adding trendlines, data labels, and basic formatting
Trendlines quantify direction and strength in your data. In an existing chart, click the data series, choose Add Trendline, and pick a linear or non-linear model that fits your data. Display the equation and R-squared value to communicate fit quality. Data labels can provide exact values for critical points; place them where they don’t obscure data. Formatting matters: choose legible font sizes, clean color palettes, and consistent labeling. These details help viewers interpret charts quickly and accurately in dashboards and reports.
Formatting charts for readability and accessibility
Readable charts use consistent fonts, appropriate font sizes, and strong contrast. Use a simple color palette with high contrast between the data series and the background. Avoid heavy gradients and ensure color choices are distinguishable by color-blind audiences (use shapes or patterns in addition to color). Include a descriptive chart title, axis labels with units, and a concise legend. When you plot data on Excel, test your chart on a projector or mobile screen to confirm readability in common viewing environments.
Using multiple data series and combo charts
If you need to compare several metrics together, you can include multiple data series in one chart. Start by selecting all relevant columns, then Insert > Charts and choose a chart type that supports multiple series. For heterogeneous data (e.g., revenue and units), consider a combo chart that uses different axis scales for each series. Carefully place the legend and ensure axis labels remain readable after adding more series. This approach is especially useful for executive summaries and quarterly performance reviews.
Interpreting, exporting, and sharing your chart
A chart’s job is to communicate, not confuse. After finalizing the visual, interpret the data by checking whether the observed trends align with your hypothesis or business narrative. Export charts as images or PDFs for reports, or copy them into slides with consistent formatting. If your audience relies on interactive dashboards, consider embedding the chart in Excel Online or Power BI. Always include a brief caption describing what the chart shows and a note on any limitations of the data.
Common pitfalls and quick fixes you should know
Common plotting pitfalls include cluttered charts, misaligned data ranges, and overusing colors. Fix clutter by removing inactive series and unnecessary gridlines, and ensure the data range covers all relevant points. If axis labels overlap, widen margins or reduce the number of tick marks. When data is updated, consider using Excel Tables for automatic range updates. Staying mindful of these issues will help you plot data on Excel more reliably.
Practical example: plotting monthly sales data for a business
Imagine you have monthly sales figures across three regions. Start by organizing the data with a Date column and one column per region. Create a line chart to compare regions over time, and add a legend so viewers can distinguish lines. Use data labels for key months, and consider a shaded area or subtle color differences to emphasize trends without distracting from the data. This concrete walkthrough demonstrates how to plot data on Excel in a real-world scenario, making your quarterly updates clearer and more persuasive.
Tools & Materials
- Excel installed (Microsoft 365 or Excel 2019+)(Ensure access to charting features and the latest charts UI)
- Structured dataset in a table(Headers in the first row; uniform data types per column)
- Backup copy of your data(Useful to prevent loss during experimentation)
- Basic understanding of chart types(Familiarity with line, column, bar, scatter charts helps speed up plotting)

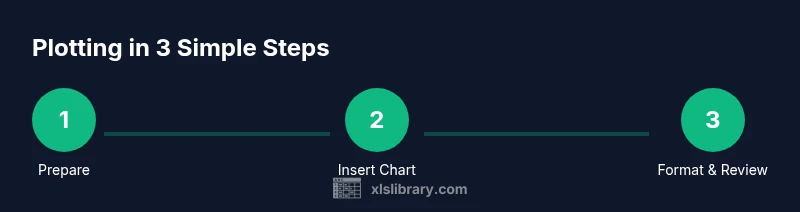

Steps
Estimated time: 25-35 minutes
- 1
Prepare your data
Review the dataset for clean headers, consistent data types, and no blank critical cells. Convert the range into a formal Excel Table to enable dynamic charting ranges.
Tip: Use a table (Ctrl+T) so the chart updates automatically as data grows. - 2
Decide the chart type
Choose a chart type that answers your question. For trends over time, use line charts; for comparisons, consider bar/column charts; for relationships, scatter plots work best.
Tip: Match data characteristics (time series vs categories) with the most appropriate chart type. - 3
Insert the chart
Select the data range and go to Insert > Charts to pick your chart. Excel will render a default version you can customize.
Tip: Ensure the axis includes all relevant data points by adjusting the data range if needed. - 4
Add labels and titles
Add a descriptive chart title, axis labels with units, and a legend if multiple series exist. Data labels can be added for key points.
Tip: Place labels where they aid interpretation rather than clutter the view. - 5
Format the chart
Tweak colors, fonts, and gridlines. Use a clear color palette and avoid overly bright backgrounds. Consider accessibility for all audiences.
Tip: Use consistent font sizes across headings, axis labels, and data labels. - 6
Add a trendline or secondary axis (if needed)
If a trendline helps interpretation, add it and display its equation. For mixed data scales, add a secondary axis to avoid squeezing one series.
Tip: Only use a secondary axis when it truly clarifies comparisons. - 7
Review the chart with fresh eyes
Check readability, axis scaling, and data integrity. Have someone else review to catch misinterpretations.
Tip: Time-box this step to avoid over-polishing at the expense of accuracy. - 8
Save and share
Save the chart in your workbook or export as an image/PDF for reports. Document any data caveats in a caption.
Tip: Save a copy of the workbook with a versioned filename for traceability.
People Also Ask
What types of charts can I plot in Excel?
Excel supports line, column, bar, area, pie, and scatter charts, plus combos. Each type serves different storytelling goals, so pick based on what you want to communicate.
You can plot line, column, bar, area, pie, and scatter charts, depending on your data and story.
How do I plot data from a table in Excel?
Select the table or data range, then go to Insert > Charts and choose a chart type. If you used a formal table, charts will update as you add data.
Select your table, pick a chart type, and Excel will generate it. Tables make future updates easier.
Why isn't my chart showing all data?
The data range may be wrong, or there are hidden rows/filters. Ensure the chart references the full dataset and consider using a Table for dynamic ranges.
Check the data range and remove any hidden rows; using a Table helps keep ranges in sync.
How can I add data labels to a chart?
Click the chart, use the plus icon or Chart Elements to add data labels. Choose the label position that improves clarity without clutter.
Select the chart and add data labels; position them so the chart remains readable.
Can I plot multiple data series on one chart?
Yes. Include multiple columns in the data range or add series in the Chart Tools. For diverse units, consider a combo chart with separate axes.
Absolutely—add multiple series to the same chart or use a combo with a secondary axis when needed.
How do I update a chart when the data changes?
If the data is in a dynamic table or range, the chart updates automatically as you modify the data. Ensure linked ranges remain accurate.
Charts update automatically when the underlying data changes, as long as the data range is correct.
Watch Video
The Essentials
- Plan your chart based on the question you want to answer
- Prepare clean, structured data before plotting
- Choose the right chart type for your data and audience
- Format for readability and accessibility
- Validate the chart with a quick review before sharing
