How to check a box in Excel: A practical, step-by-step guide

What is a check box in Excel and why use it?

A check box in Excel is a small interactive control that lets you represent boolean states—checked or unchecked—within your worksheet. When you click a box, Excel updates a linked cell with TRUE or FALSE (or 1/0, depending on configuration). The most common route to use is the Form Control checkbox, which is reliable across Excel versions and easier to manage when you have many checkboxes on a single sheet. By adding check boxes, you can convert static lists into dynamic dashboards, checklists, or task trackers. According to XLS Library, these little controls are powerful because they connect human actions with data automatically, enabling you to build responsive sheets without writing macros. In practice, you’ll likely pair a checkbox with a simple IF formula, a SUM to count completed items, or conditional formatting to highlight progress. For teams, a well-constructed set of check boxes can improve clarity, reduce miscommunication, and accelerate status reporting. As you explore, you’ll discover that a checkbox is more than a cosmetic feature—it’s a lightweight data‑capture tool that scales from a single task to multi‑column project boards.

When planning where to place check boxes, map them to a data column that represents tasks or criteria. Keep the labels descriptive, but place the checkbox control itself near the related data so viewers can scan statuses quickly. Finally, remember that Excel’s behavior may vary slightly between Windows and Mac versions; the core steps and logic remain the same, making this a portable skill for any office environment.

Inserting a Checkbox: Form Controls vs ActiveX

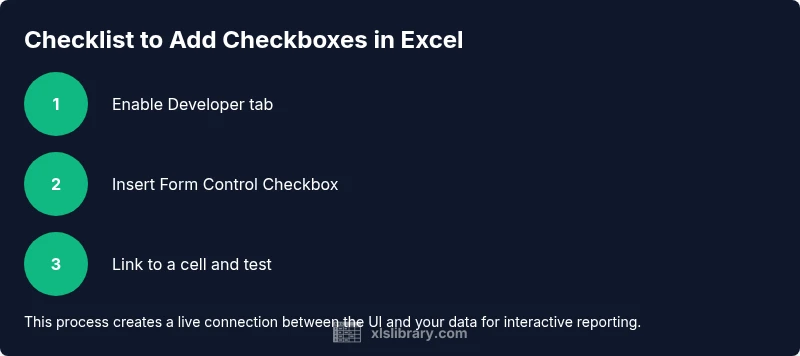

In Excel, you have two primary types of checkbox controls: Form Controls and ActiveX Controls. For most users and for standard data tracking, Form Controls are preferred due to their simplicity, compatibility, and ease of copying across rows. ActiveX Controls offer more customization in some cases but can cause compatibility issues and require more advanced handling. To insert a checkbox, start by enabling the Developer tab (File > Options > Customize Ribbon > check Developer). Then go to Developer > Insert and choose Form Control > Checkbox. Click the sheet to place it; Excel will attach a label that you can edit or remove. The checkbox will be a square shape that you can resize and position. For consistency in large sheets, it’s common to place a single checkbox per row or per category and link each to its corresponding data cell. If you’re working on a Mac, the steps are similar, but the interface labels might differ slightly; the logic remains identical, which is why Form Controls are often the safer choice for cross‑platform work. In most cases, you’ll configure four key aspects: location, size, label text, and the linked cell. After that, you can reuse, copy, or drag to apply to multiple rows with predictable results.

Linking a checkbox to a cell and reading its value

The real power of a checkbox comes from linking it to a target cell. Right-click the checkbox (or use the right panel) and choose “Format Control.” In the Control tab, set the Cell Link to a specific cell (e.g., B2). When the checkbox is checked, that cell displays TRUE (or 1, depending on configuration); when unchecked, FALSE (or 0). You can then reference this linked cell in formulas and dashboards. A common pattern is to use a formula like =IF(B2, "Done", "Not done") to present human‑readable status. If you prefer a numeric approach, =IF(B2, 1, 0) returns a 1 or 0 that you can sum or count with other data. Copying the checkbox with its linked cell to adjacent rows automatically updates the links if you use relative addressing; otherwise, you’ll need to re‑link each instance. Keeping a consistent linking strategy helps prevent mismatches between the visible check box and the underlying data, especially on larger sheets. In practice, you’ll build a small table that lists tasks and their status, then use the linked cell values to drive counts and visuals.

Practical uses in dashboards and checklists

Check boxes excel at providing quick feedback on progress within dashboards and checklists. In a task tracker, you can place a checkbox in front of each task and link it to a helper column that stores TRUE/FALSE. Conditional formatting can then highlight completed items in green and pending items in amber, making the overall progress instantly visible. On dashboards, the number of checked boxes can be summarized with =SUM(range) because Excel treats TRUE as 1 and FALSE as 0 in arithmetic. This makes it easy to present a progress percentage: =SUM(B2:B20)/COUNTA(B2:B20). When several tasks drive a larger metric, consider grouping them by category and using a PivotTable to analyze completion rates across teams or time periods. You can also combine check boxes with data validation or formulas to enforce rules, such as ensuring at least one item in a category is checked before proceeding. The result is a compact, interactive interface that communicates status without cluttering your data with extra text.

Common pitfalls and how to troubleshoot

Checkboxes are simple, but a few gotchas can trip you up. First, if you don’t link the checkbox to a cell, the value won’t reflect your selections in formulas. Second, when you insert multiple check boxes, Excel’s default labels may overlap the data; remove or edit the label text to keep the sheet clean. Third, if you sort or insert rows, linked cells may shift; ensure consistent linking by using absolute references or relocating the control. Fourth, copy/paste can copy only the control’s appearance, not its link; you may need to re‑link after moving. Finally, on Mac, some menu names differ slightly, so check the equivalent options under the Format Control dialog. By planning your layout, testing links, and keeping a consistent pattern, you’ll minimize misalignment and stale data. If a checkbox simply won’t respond, verify that the cell link is correct and that the Form Control is not overlapped by another object.

Advanced tips: dynamic formulas, conditional formatting, and linked cells

For advanced users, check boxes can feed into dynamic calculations and visuals. Counting completed items across a range is straightforward: =SUM(range) where the range contains the linked TRUE/FALSE values. If you want to count using 0/1, you can apply a double unary: =SUM(--range). You can display progress percentages with a simple ratio like =SUM(--range)/COUNTA(range). Conditional formatting can highlight sections that are incomplete or overdue by referencing the linked cells; for example, apply a rule that colors the row when the linked cell is FALSE. If you have a large dataset, consider grouping related tasks and using a PivotTable to aggregate completion by category or owner. For dynamic dashboards in Excel 365, you can combine check boxes with FILTER or SORT to present interactive views that update as users check boxes. Remember to keep your workbook organized with a clear labeling convention and consistent cell-link patterns, so you can scale check boxes from a few items to hundreds without sacrificing reliability.
