Excel to Address Labels: Step-by-Step Mail Merge Guide
Learn to turn an Excel address list into printed labels using Word mail merge, templates, and clean-data best practices. A practical XLS Library guide guiding you from data prep to a reusable label workflow for 2026.
Turn an Excel address list into print-ready labels using Word mail merge. This quick answer outlines the core objective, required inputs, and the fastest path to accurate labels, plus a shortcut for saving a reusable template. With clean data and a proven workflow, you can produce professional mailing labels in minutes.
From Excel to Address Labels: The Basics
Excel remains the starting point for address lists. The goal is to produce print-ready labels with minimal errors, by connecting your data to a label template in Word and running a mail-merge workflow. According to XLS Library, this approach keeps data centralized and reduces manual transcription, which saves time during busy mailing cycles. You can think of this as a repeatable, scalable process for any label size, template, or printer. The core idea is to treat the Excel sheet as a data source and to standardize headers, formats, and rows so every label maps cleanly to the template.
Preparing Your Excel Data for Printing
Start with a clean, well-structured workbook. Ensure headers are concise and consistent (e.g., FirstName, LastName, Address1, Address2, City, State, ZIP). Place a single address per row and remove duplicates. Convert the data range to a table (Ctrl+T) to simplify later connections. Validate ZIP codes and state abbreviations using Data Validation rules. Finally, save a copy of the workbook to use as the primary data source for the mail merge.
Designing Your Label Template (Avery, Word Mail Merge)
Choose a label template compatible with your printer and label sheets (e.g., Avery 5160/5161 equivalents). In Word, set up the document as Labels (Mailings > Labels) and select the correct label size. Create a consistent margin and gap so printed text stays within the label boundaries. Consider saving a template version for future mailings and note the exact sheet count and page layout.
Step-By-Step Workflow Overview

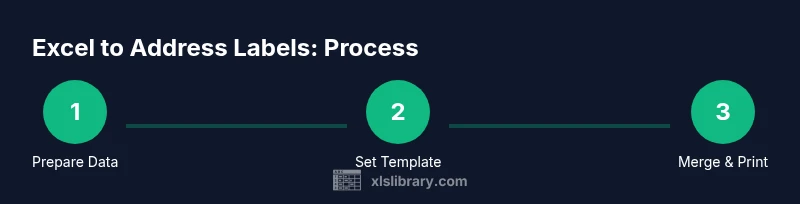

In practice, the Excel-to-label workflow follows a simple sequence: prepare your data, select a matching label template, connect Word to Excel via Mail Merge, insert address fields, preview results, complete the merge, and print. This flow minimizes misprints by ensuring that data sources, templates, and printer settings are aligned before you start printing.
Common Pitfalls and How to Avoid Them
Common issues include misaligned text due to incorrect margins, misnamed headers that Word cannot map to, and stale data being reused. Always test with a single sheet and a test page before printing a full batch. Keep a clear naming convention for templates and avoid mixing label sizes in a single project.
Tips for Data Quality in Address Lists
High-quality outcomes start with data quality. Normalize case, trim extraneous spaces, remove duplicates, and verify country and postal formats. Consider adding a column that flags incomplete addresses and address verification steps before merging. Clean data reduces print errors and saves time on corrections.
Verifying Labels Before Printing
Always preview results in Word using Preview Results. Validate a sample of labels on plain paper before using label sheets. If alignment is off, adjust the label margins or printer settings, then re-preview until the test print matches the template.
Automating Repetitive Label Runs with Excel Features
For frequent mailings, automate repeats by locking the data source in a named range, using a fixed template, and saving a reusable Word document. Consider small macros in Excel to standardize formatting and to export your data in the exact column order the merge expects.
Real-World Case Study: A Small Business Mailing Label Run
A local shop streamlined its monthly mailings by storing customer addresses in an Excel table, using a Word label template matching their Avery sheets, and running a monthly mail merge. The result was a 50% decrease in labeling errors and a 30% faster printing cycle, freeing time for outreach and follow-ups.
Tools & Materials
- Microsoft Word (2016/2019/365)(Needed to perform mail merge with Excel data)
- Excel workbook with address data(Fully cleaned and structured)
- Label templates (Avery 5160/5161 or compatible)(Check template compatibility with your printer)
- Printer compatible with label sheets(Check margins and state of labels)
- Printer settings (label margins, orientation)(Set to avoid misalignment)
- Optional: Label sheets (Avery or generic) with correct dimensions(If not using templates, print on plain paper first)
- Scissors or paper cutter(Useful for trimming misprints)
Steps
Estimated time: 60-90 minutes
- 1
Prepare your Excel data
Open the workbook and verify headers. Normalize names and address fields, remove duplicates, and ensure one address per row. Save a copy for the merge data source.
Tip: Use Remove Duplicates and TRIM to clean whitespace before saving. - 2
Choose a label template in Word
In Word, go to Mailings > Labels > Options and select the correct label size (e.g., Avery 5160). Save the template if you reuse it.
Tip: Record the exact label size and margins for future runs. - 3
Start the Mail Merge
Click Start Mail Merge > Labels, then choose Use an existing list and browse to your Excel workbook. Confirm the sheet and data range.
Tip: Keep the Excel workbook open while configuring the merge to avoid path issues. - 4
Insert Address Block fields
Placeholders map fields like FirstName, LastName, Address1, Address2, City, State, ZIP to the label. Use Address Block or individual fields for full control.
Tip: If you need a custom format, insert specific fields and add separators manually. - 5
Preview and adjust
Use Preview Results to cycle through addresses. Fix any misalignments by adjusting margins, font size, or field spacing.
Tip: If a field is missing, insert a conditional field to skip empty lines. - 6
Complete the merge and print
Choose Print or Edit Individual Documents to save a PDF version. Print on label sheets with the correct orientation.
Tip: Print a single sheet first to confirm alignment before a full run. - 7
Save for reuse
Save the Word template and keep the Excel data connection for future mailings. Document the steps so teammates can reuse.
Tip: Keep a shared folder with data, template, and printer settings.
People Also Ask
Can I print address labels directly from Excel without Word?
Excel alone isn't designed for label templates; Word mail merge provides predictable formatting. You can print rough labels but the reliable method uses Word as the mail-merge engine.
Excel alone isn’t designed for label templates; Word mail merge provides predictable formatting. You can print rough labels, but the reliable method uses Word as the mail-merge engine.
Which label sizes templates work best with Excel data?
Common sizes like Avery 5160 align well with many standard 3-column layouts. Always verify the template with your printer and label stock before large batches.
Common sizes like Avery 5160 align with many standard layouts. Always verify the template with your printer before printing a batch.
How can I validate addresses automatically in Excel?
Use TRIM to remove extraneous spaces, proper case for readability, and data validation to restrict field formats. A quick internal check helps avoid misprints during the merge.
Use TRIM and proper-case, plus data validation to enforce formats. A quick internal check helps prevent misprints during the merge.
Can I automate this workflow with macros?
Yes. You can create macros to prepare data, generate the mail merge template, and trigger a save/print sequence. Start with a small macro to export the clean data range and map fields.
Yes. You can automate with macros to prepare data, map fields, and trigger print sequences. Start small by exporting a clean data range.
What should I do for international addresses?
International addresses may require different fields or non-US layouts. Adapt the template, ensure country-specific fields exist, and test a few international samples first.
International addresses may need different fields and layouts. Adapt the template and test with samples before printing.
Watch Video
The Essentials
- Prepare clean, structured data in Excel.
- Use a matching label template in Word.
- Map Excel fields to label placeholders with care.
- Preview before printing to avoid waste.
- Save a reusable template for future mailings.
