How to Check Excel for Circular References

What Is a Circular Reference in Excel?

A circular reference occurs when a formula refers back to its own cell, or to another cell that eventually points back to the original cell. This creates a calculation loop that can prevent Excel from returning a stable result. Direct circular references happen when A1 uses A1 in its formula; indirect loops involve multiple cells that reference each other in a cycle. Understanding the difference between direct and indirect references helps you diagnose and plan fixes more effectively. In practice, circular references can be intentional in iterative models, but most workbooks benefit from eliminating them or controlling iteration with care. As you work through this guide, you’ll learn to distinguish benign iterations from problematic loops and to use built-in auditing tools to locate them.

How Excel Detects Circular References

Excel signals circular references with a calculation loop that cannot be resolved in a single pass. In many cases the status bar will display a notice such as Circular Reference, along with a cell address. On newer Excel versions, the Formula Auditing tools highlight problem areas and provide navigation. The workbook may still calculate in a limited way if iterative calculation is enabled. The key to reliable detection is to rely on the built-in auditing features rather than manual inspection. In addition, you may see the result of a formula as #VALUE! or experience slowdowns in large workbooks, which can hint at a loop.

Direct vs Indirect Circular References

Direct circular references occur when a cell references itself directly, for example, =A1 in A1. Indirect circular references involve chains of dependencies, such as A1 refers to B1, B1 refers back to A1 or to another cell that ultimately returns to A1. Indirect loops are harder to spot because they span multiple formulas and worksheets. In practice, most circular references are unintentional and result from formula design that places a cell inside its own calculation path. Understanding the difference helps you decide whether to rearrange formulas, use helper cells, or implement iterative calculation with clear constraints.

Tools to Identify Circular References

Use these built-in tools in Excel to locate circular references efficiently:

• Status Bar: Look for Circular Reference messages at the bottom of the window.
• Formula Auditing: Use Trace Precedents and Trace Dependents to map the path of a formula.
• Error Checking: In the Formulas tab, select Error Checking and choose Circular References from the drop-down list (if available).
• Evaluate Formula: Step through a formula to see how values change at each stage.
• Name Manager: Some loops involve named ranges; inspect any names used in formulas. These tools help you isolate the exact cells involved and understand how the loop propagates.

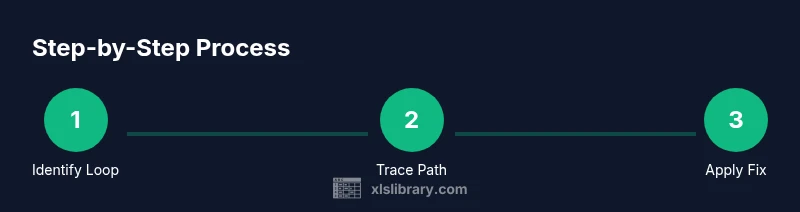

Step-by-step: Locate the Circular Reference

1. Check the status bar for a hint about where the loop begins. 2) Go to the Formulas tab → Error Checking → Circular References. Excel will select the first cell involved. 3) Use Trace Precedents and Trace Dependents to follow the calculation chain across worksheets. 4) If the workbook uses multiple sheets, switch between tabs to see inter-sheet links. 5) If Excel doesn’t show a specific cell, use Evaluate Formula to inspect the nested parts of a complex expression. 6) Record the path you follow on a separate sheet for clarity. 7) Save your workbook and test a small change in a copy to confirm the location.

Step-by-step: Fix the Circular Reference

After locating the loop, review each cell in the chain to determine where the reference can be broken. Start with direct fixes—adjust the formula to remove the immediate self-reference, or substitute a value with a helper cell reference. If the loop is indirect, consider redesigning the calculation so one cell no longer depends on another in the loop. In many cases, you can introduce a separate input cell or use IF conditions to prevent recursive evaluation. Always test changes in a copy to ensure you’ve eliminated the loop without compromising intended results.

Iterative Calculation: When to Use It

Iterative calculation allows Excel to resolve certain loops by repeatedly recalculating until numbers stabilize within a tolerance. Use this feature only when your model truly requires it, such as certain financial models or engineering calculations. Before enabling it, understand the risks: slower performance, potential for non-converging results, and the need to specify a maximum iteration count and a convergent tolerance. If you enable it, document the assumptions clearly so future editors understand why iterations exist.

Best Practices to Prevent Circular References

Proactively prevent circular references by planning data flows, using helper columns, and avoiding direct forward references. Document your workbook's calculation logic in a separate sheet so future users can spot potential loops. Regularly audit formulas after major edits and enforce a naming convention that minimizes ambiguous references. When in doubt, favor modular designs where one output cell depends on a single, well-defined input cell or a simple chain of dependencies.

Real-world Examples and Troubleshooting Checklist

In practice, a common culprit is a formula that sums values from a range that includes the cell containing the formula itself. Another frequent issue is a reference to a cell that is calculated from another cell that also depends on the original cell. Use the troubleshooting checklist: (1) verify all recent changes, (2) isolate the loop with Trace Precedents, (3) remove direct self-references, (4) replace with helper cells if needed, (5) rerun the audit, and (6) validate results with a controlled test file.

Advanced Tips: Using Evaluate Formula Effectively

Evaluate Formula lets you step through a complex expression to see intermediate results. This is invaluable for nested functions or multi-sheet references. Start with the outermost function and work inward, watching how each argument affects the outcome. If the evaluation reveals a self-contained loop, you’ve pinpointed the source; you can then apply one of the fixes discussed earlier and re-evaluate to confirm resolution.

Authoritative Sources and Further Reading

For deeper guidance, consult official documentation from Microsoft and Excel-focused training resources. Understanding the official stance on circular references helps you implement robust solutions and avoid common pitfalls. Always corroborate steps with up-to-date, trusted references when maintaining critical workbooks.
