How to Make an XY Graph on Excel
Learn how to make an XY graph on Excel with a clear, practical approach. This guide covers data prep, inserting a scatter plot, customizing axes and labels, adding a trendline, and avoiding common pitfalls for accurate data visualization.
By the end of this guide you will be able to make an XY graph on Excel (an XY scatter plot) from simple data. Key steps: organize your data in two columns, select the range, insert a Scatter chart, choose the marker-only XY series, and customize axes, titles, and a trendline if needed. We’ll cover formatting, labeling, and common pitfalls.
Why XY graphs matter in data visualization
An XY graph (often called an XY scatter plot) is a powerful way to reveal relationships between two numerical variables. Unlike a line chart, which emphasizes trends over ordered categories, an XY graph focuses on how one variable changes in relation to another. This makes it ideal for exploring correlation, detecting outliers, and illustrating the strength of a relationship. According to XLS Library, mastering XY charts helps both aspiring and professional Excel users communicate data-driven insights clearly. When you learn how to make an xy graph on excel, you gain a versatile tool for experiments, finance analyses, and scientific datasets. In practice, you’ll plot each observation as a point defined by an (x, y) pair and then use visual cues—colors, shapes, and labels—to tell a story about the data. A well-crafted XY graph can answer questions like: Is there a linear relationship? How strong is the association? Are there outliers that require closer inspection? The key is to start with clean, well-structured data and then apply thoughtful formatting that makes patterns obvious at a glance.
As you work through this guide, you’ll see how an XY graph differs from other chart types and why the choice of axis scales and marker styles matters. You’ll also learn how to interpret the slope and dispersion of points, which are essential for making accurate inferences. By following practical steps, you’ll be able to build a compelling chart that communicates complex information without overwhelming your audience. This approach aligns with XLS Library’s emphasis on practical, approachable Excel tutorials that help you master data tasks with confidence.
wordCountApproachalike
Tools & Materials
- Excel or compatible spreadsheet software(Office 365, Excel 2019+, or equivalent desktop/mobile apps)
- Two-column numeric dataset(Columns named, with headers; ensure both columns have the same number of data points)
- Mouse/keyboard or trackpad(For selecting ranges and navigating tabs)
- Optional formatting guide(Helpful for consistent fonts, colors, and gridlines)

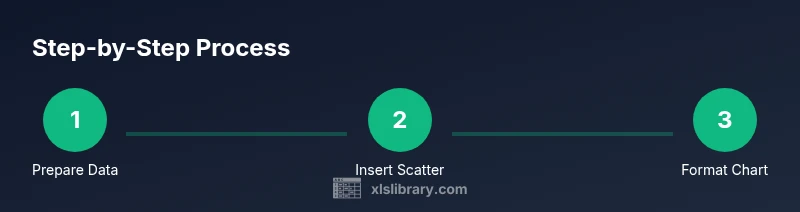

Steps
Estimated time: 15-25 minutes
- 1
Prepare your data
Arrange your data in two adjacent columns. The left column should be your X values and the right column your Y values. Include clear headers so you can reference them in the chart. This setup is essential for an accurate xy graph on excel.
Tip: Verify there are no blank rows within the data range; gaps can distort the plot. - 2
Select the data range
Click and drag to highlight both columns including headers. This tells Excel which data to plot on the Scatter chart.
Tip: If your dataset is large, consider selecting a named range to keep things organized. - 3
Insert the XY scatter chart
Go to the Insert tab, choose Scatter, and select the option that shows markers only (Scatter with only Markers). This creates the basic XY graph.
Tip: Avoid line connections for this chart type to prevent misleading visuals. - 4
Set the data series correctly
Ensure the X values come from the left column and Y values from the right column. If Excel misassigns, use Select Data to adjust the series.
Tip: If you see a single point, check that your data range spans all rows and includes headers if used. - 5
Add axis titles and a chart title
Click the chart, use Chart Elements to turn on Axis Titles and Chart Title, then input meaningful labels that reflect the data context.
Tip: Keep titles concise and avoid abbreviations that could confuse readers. - 6
Format axes and gridlines
Adjust axis scales to fit your data (minimum/maximum), enable major/minor gridlines for readability, and apply a legible font size.
Tip: Use a consistent axis scale to avoid distorting relationships. - 7
Customize markers and colors
Choose marker shapes and colors that maximize contrast against the chart background. Consistency helps readers compare points easily.
Tip: For accessibility, ensure color choices provide sufficient contrast for color-only differentiation. - 8
Add a trendline and interpretation
If a linear relationship is suspected, add a trendline (linear or polynomial) and display its equation if helpful for interpretation.
Tip: Trendlines are descriptive tools; avoid over-relying on them for predictive claims without validation.
People Also Ask
What is an XY graph and when should I use it in Excel?
An XY graph, or XY scatter plot, displays data points based on paired X and Y values. Use it to explore relationships, correlations, and distributions between two numerical variables. It’s ideal when you want to see how changes in one variable relate to changes in another.
An XY graph shows how two numeric variables relate. Use it to explore correlations and patterns between X and Y values.
How do I differentiate data points in an XY graph?
You can differentiate points by color, shape, or size, and you can add data labels to show exact values. Consistent markers help readers distinguish categories or series if you plot multiple sets.
Differentiate points using color, shape, or size, and consider data labels for clarity.
Can I show a trendline on my XY graph?
Yes. Excel lets you add a trendline (linear or polynomial) and display its equation. This helps summarize the overall relationship between X and Y values. Use it to support interpretations, but note that it is a descriptive aid, not a predictor.
You can add a trendline to summarize the relationship and show its equation; use it as a descriptive aid.
What should I check if the chart looks odd or incomplete?
Verify that the data range is correct, axes are properly scaled, and that you chose the correct chart type. Ensure there are no non-numeric values in numeric columns that could cause plotting issues.
Check the data range, axis scaling, and chart type; ensure numeric columns contain numbers.
How do I export or share an XY graph?
You can copy the chart to other documents or save the workbook as a PDF or image. Use Chart Tools to customize the output and export options for sharing.
Copy the chart or save the workbook as PDF or image for sharing.
Watch Video
The Essentials
- Prepare clean, two-column data with headers.
- Use Scatter with Markers for true XY visualization.
- Customize axes, titles, and markers for clarity.
- Add a trendline to explore relationships while noting limits.
