How to Make a Scatter Plot in Excel
Learn how to create a polished scatter plot in Excel with practical steps, formatting tips, and best practices for data visualization in 2026.
Want to visualize relationships in your data? You can make a scatter plot in Excel by selecting your numeric data, inserting a Scatter chart, and refining axes, labels, and data series. Ensure data is clean (no text in numeric columns), and use markers, titles, and optional trendlines to enhance interpretation. The XLS Library Team explains the full workflow.
What a scatter plot communicates\n\nA scatter plot visually maps two numeric variables to see potential relationships. Each point represents a data pair (x, y). The pattern of points—whether they cluster, trend upward or downward, or form a cloud—helps you assess correlation, scatter, and potential outliers. In Excel, scatter plots avoid the misinterpretations common with line charts when the variable is not sequential. By default, a scatter plot places one variable on the horizontal axis (X) and the other on the vertical axis (Y). The beauty of this chart is its simplicity: you can quickly spot linear trends, clusters, heteroscedasticity, or unusual observations. For analysts using Excel, scatter plots are especially valuable in fields like finance, marketing, and operations where understanding the relationship between a predictor and an outcome informs decisions. According to XLS Library, mastering this visualization strengthens data storytelling, increases transparency, and supports more accurate inferences. When you prepare to create one, focus first on data quality and clear labeling, then decide what additional annotations will help your audience interpret the pattern at a glance.
When to use a scatter plot in Excel\n\nUse a scatter plot when you want to explore the relationship between two numeric variables. It’s ideal for spotting correlations, identifying outliers, and assessing linearity. If your data includes a clear predictor and response variable, a scatter plot helps you test hypotheses and communicate insights to stakeholders. Avoid using scatter plots for categorical data or when the goal is to show a distribution alone; histograms or box plots may be more appropriate in those cases. The XLS Library team notes that scatter plots shine in dashboards and reports where quick visual cues matter, such as sales versus spend, temperature versus yield, or time-to-event versus dosage.
Data prerequisites and cleaning\n\nBefore opening Excel, ensure your dataset has two numeric columns with matching row counts. Remove any non-numeric characters from the data, convert values to numbers if they’re stored as text, and handle blanks consistently. Decide whether you need to scale axis ranges manually or allow Excel to auto-scale. Check for outliers that could skew interpretation, and consider creating a copy of your data for experimentation. The goal is a clean, bi-variate dataset where every row contains a valid (x, y) pair. If you’re sharing the chart with others, document units (e.g., dollars, kilograms) and any data transformations you performed. According to XLS Library analysis, clean data accelerates insight and reduces misinterpretation in visualization-heavy reports.
The anatomy of the chart: axes, markers, and labels\n\nA scatter plot is composed of a grid, two axes, markers representing data points, and a legend when multiple series exist. Label both axes clearly (e.g., Revenue ($) on X, Growth (%) on Y) and provide a concise chart title. Choose marker shapes and colors that maximize contrast against the background and don’t clone too many colors across series. If you plot a single series, you may omit the legend or keep it minimal. Gridlines should be subtle to keep focus on data. In Excel you can adjust axis titles, set minimum/maximum values, and add tick marks to improve readability. The XLS Library guidance emphasizes consistent labeling and clean formatting to ensure your audience can interpret the plot quickly.
Preparing data in Excel: tips and checks\n\nStart by selecting your data table, then ensure the first row contains headers that describe each column. Convert any text-number values to numeric types with VALUE() or by multiplying by 1. Remove or fill blanks thoughtfully to avoid gaps in your chart. If units vary within a column, consider normalizing or creating separate plots. Excel’s Data > Text to Columns can fix certain formatting issues, while Find & Replace can standardize decimal separators. Finally, save a version of your raw data so you can revert changes during experimentation. The goal is a reliable foundation so your scatter plot reflects real relationships, not data quirks.
Step-by-step creation overview\n\nThis section outlines the core actions to produce a scatter plot in Excel. You’ll first choose your numeric columns, insert the chart type, and then refine the presentation. The process is straightforward, but attention to data quality and labeling makes the end result easier to interpret and share in meetings or reports. The XLS Library method emphasizes a deliberate setup: clean data, precise axis naming, and purposeful formatting before you finalize the chart.
Tools & Materials
- Laptop or desktop with Excel 2016 or later(Ensure you have a recent version for Scatter chart options and formatting features.)
- Two numeric data columns(X and Y values must be numeric and aligned by row.)
- Mouse or trackpad(For precise clicking and selecting data ranges.)
- Optional: a separate data sheet for raw data(Keeps your working chart clean and allows versioning.)
- Chart template or theme(Helps maintain consistent visuals across dashboards.)

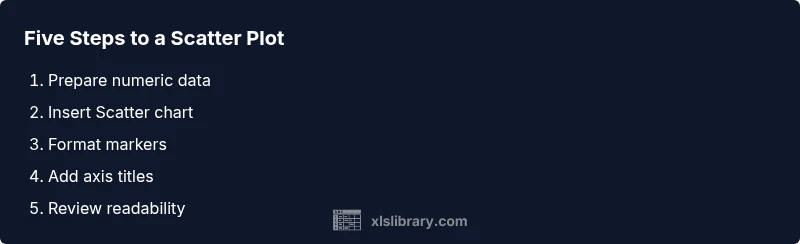

Steps
Estimated time: 20-30 minutes
- 1
Select numeric data
Highlight the two numeric columns you want to plot (including headers). Excel uses the first column as the X values by default. Check that every row contains a valid pair (no blanks in the middle of your data).
Tip: If your data contains blanks, decide whether to exclude the corresponding row or fill gaps before plotting. - 2
Insert a Scatter chart
Go to the Insert tab, click on Scatter, and choose the basic Scatter with only markers. This creates a simple XY plot showing the relationship between the two variables.
Tip: Avoid choosing a line chart here, as lines can imply a continuous relationship that isn’t present. - 3
Assess the chart type and data series
If you have multiple data series, select the preferred series and ensure each uses the correct X and Y values. For a single dataset, you can proceed with the default series. Consider adding a trendline if you want to highlight a correlation.
Tip: For multiple series, use distinct colors and a legend to keep the chart readable. - 4
Add axis titles and a chart title
Click the Chart Elements button (the plus sign) and add Axis Titles and a Chart Title. Enter concise names that describe the data and units where applicable (e.g., “Advertising Spend ($)” and “Sales Revenue ($)”).
Tip: Avoid jargon in titles; keep them short and descriptive for quick scanning. - 5
Format markers and gridlines
Open the Format Data Series pane to adjust marker size, shape, and color. Subtle gridlines help orientation without overpowering data points. If the plot is dense, reduce marker size or apply transparency.
Tip: Higher transparency prevents overplotting from obscuring underlying patterns. - 6
Add a trendline (optional)
If you want to show a general trend, add a trendline (linear is common). Display the equation and R-squared value to communicate the strength of the relationship.
Tip: Only add a trendline if it adds clarity; otherwise, it may mislead viewers about causation. - 7
Set axis scales and verify readability
Adjust axis minimums and maximums to frame the data effectively. Ensure tick marks are legible and the chart remains within the report’s visual style. Consider a log scale only if your data spans several orders of magnitude.
Tip: Avoid squeezing data into a tiny axis range; it can distort interpretation. - 8
Review, save, and share
Review the final chart for accuracy, copy it into your report, and save the workbook. If you plan to update the data, name the chart clearly to reflect its purpose (e.g., “Q1 Marketing vs Revenue”).
Tip: Create a versioned file name so you can track updates over time.
People Also Ask
What is a scatter plot used for?
A scatter plot shows the relationship between two numeric variables by plotting data points on an X-Y plane. It helps identify correlations, trends, and outliers, enabling data-driven decisions.
A scatter plot displays how two numbers relate, helping you spot trends and outliers at a glance.
Do I need to clean data before plotting?
Yes. Ensure both columns are numeric, remove or correct blanks, and verify consistent units to avoid distorted patterns.
Yes—clean, numeric data makes the chart accurate and easy to interpret.
How do I add a trendline in Excel?
Click the chart, choose Add Chart Element > Trendline, select a type (linear is common), and opt to display the equation and R-squared value.
Add a trendline from the Chart Tools to show the overall direction of the data.
Can a scatter plot handle more than two variables?
A scatter plot inherently shows two variables. You can encode a third variable using color or marker size, or create multiple plots.
You can only plot two variables at a time; use color or size to add a third dimension if needed.
Why are points overlapping or crowded?
High-density data can overlap. Try using transparency, smaller markers, or a hexbin/2D histogram overlay to reveal density.
If points crowd together, adjust opacity or use density visualization to see patterns.
How can I export the chart for reports?
Right-click the chart to copy, or use File > Save As to export the workbook or the chart as an image/PDF.
You can export the chart as an image or embed it in a report.
What if my data uses a different scale units?
Normalize or standardize values, or adjust axis ranges to ensure the chart reflects the relationship rather than unit differences.
If units differ, normalize data so the relationship is clear.
Is a scatter plot appropriate for time-series data?
Scatter plots can show time-based relationships, but a line chart is typically better for连续 data over time unless you’re focusing on correlation between two variables.
For time series, line charts often work best unless examining a two-variable relationship.
Watch Video
The Essentials
- Prepare two numeric columns and clean data first
- Choose Scatter chart, not a line chart, for true XY relationships
- Label axes clearly and consider a trendline for context
- Format markers and gridlines to improve readability
- Verify axis scales to avoid misinterpretation
