Line Plot Excel: A Practical How-To Guide
A comprehensive, step-by-step guide to creating and customizing line plots in Excel. Learn data setup, chart creation, multi-series comparisons, and best practices for clear, publish-ready visuals in 2026.
By the end of this guide you will be able to create a line plot in Excel, customize axes and markers, and compare multiple data series. Start with a clean two-column data layout, insert a basic line chart, and progressively apply formatting for clarity. You’ll learn best practices for readability, accessibility, and effective storytelling with a line plot excel visualization that you can share with your team and stakeholders.
What a Line Plot Tells You and When to Use It
Line plots reveal trends over time or across ordered categories by connecting individual data points with lines. They are ideal when you want to compare patterns across multiple series, observe seasonality, or track changes in a metric over regular intervals. In practice, a line plot excels for sales by month, daily website visits, or temperature readings across weeks. When your data has a natural order—time, distance, or sequence—a line chart helps the eye follow movement and identify peaks, troughs, and turning points. In Excel, you can start with a simple two-column dataset and a default line chart, then layer in extra series, labels, and annotations as needed. The XLS Library approach emphasizes clarity: minimize clutter, maintain consistent scales, and label axes clearly.
Data Layout: Getting Your Excel Table Ready
Before you plot, arrange your data in a clean two-column layout with headers. Put the X-values (time, categories, or sequence) in the left column and the Y-values (the metric you’re tracking) in the right column. Ensure there are no merged cells in the data range and that all numbers are truly numeric (no stray text). If you’re using dates, store them in a recognized date format; Excel will automatically interpret them on the horizontal axis. A well-structured table not only makes the initial chart easier to create but also simplifies future updates when new data arrives. As you design, consider turning the range into an Excel Table so your chart can expand automatically as you add rows.
Creating Your First Line Plot
Start by selecting both columns, including headers. Go to the Insert tab, choose Charts, and pick a basic Line chart. Excel will place a line for each Y-series, connected across the X-values. If you only have one series, you’ll see a single line with markers at each point. Review the chart area, and use the Chart Design tab to switch layouts and color themes. Keep the default axis settings unless your data requires adjustments. The key is to ensure the line is easy to follow and the legend is visible but not overwhelming. After you create the chart, you can move it to a preferred location on the worksheet or to a dedicated chart sheet for larger workbooks. This step establishes a solid baseline for further refinements.
Customizing Axes, Titles, and Gridlines
Give your chart a descriptive title and label both axes. Right-click the horizontal axis to set formats such as date or text categories, and adjust the vertical axis to a sensible min and max to avoid squeezed lines. Gridlines improve readability; consider showing only major gridlines to reduce visual noise. Use a clear font, increase line thickness slightly for print, and choose a high-contrast color for the axis lines. If you need more space for the data, widen the chart area or adjust the margins. By aligning titles, axis labels, and gridlines, you create a chart that communicates at a glance, which is essential for reports and quick decision-making.
Adding and Managing Multiple Series
If you want to compare several metrics on the same chart, you can add multiple Y-series that share the same X-values. Use Chart Design > Select Data to add or remove series, and ensure each series has a meaningful name for the legend. When colors clash or become hard to differentiate, assign distinct, accessible colors and consider using markers with different shapes. If the series start at different time points, normalize the axes to avoid misinterpretation. A tidy multi-series line plot supports insights such as cross-product performance, campaign comparisons, or regional trends.
Formatting Points, Lines, and Legends for Clarity
Customize line style (solid, dashed), marker shapes, and data point size to improve readability. Avoid overly bright colors on white backgrounds; instead, use a cohesive palette with enough contrast. Position the legend where it doesn’t cover data points—often a top-right or bottom-right corner works well. Ensure axis labels remain legible after resizing the chart. You can apply a subtle gradient fill to the line or add data labels for key points, but avoid clutter. The goal is legibility: a clean line plot that guides the viewer’s eye without distraction.
Trendlines, Data Labels, and Annotations
For trend analysis, add a trendline (linear, polynomial, or exponential) to reveal underlying patterns. You can display the equation and R-squared value to aid interpretation. Data labels identify exact values at important points; show only a subset (like peaks or recent values) to maintain readability. Annotations placed near significant events help viewers understand context, such as a seasonality shift or a product launch. Use callouts sparingly, so they augment rather than overwhelm the chart.
Time Series vs. Category Axes: Best Practices
When the X-axis represents dates or times, ensure Excel recognizes the axis as a date axis so spacing reflects actual intervals. For non-time categories, avoid implying a numeric scale; treat the axis as categories and let the line demonstrate order rather than numeric progression. If you have irregular time gaps, consider resampling or adding a secondary axis for emphasis. Consistency across charts in a workbook helps readers compare trends reliably.
Dynamic Updates: Using Tables and Named Ranges
Convert your dataset to an Excel Table (Insert > Table) so the chart expands automatically as you add new rows. Named ranges can also lock in the data series for easy updates, especially when data is refreshed from external sources. If you’re sharing the workbook with colleagues, ensure the named ranges are documented in a separate sheet or comments. This approach minimizes manual re-plotting and keeps visuals current with ongoing data collection, which is invaluable for dashboards and regular reporting.
Cross-Workbook Line Plots: Linking Data
Linking data across workbooks can help you compare metrics from different files, such as quarterly results from separate departments. Use external references or Power Query to import data, then plot the resulting two-column set as a line chart. Be mindful of file paths and access permissions; broken links can disrupt visuals. If needed, refresh connections to update the plot with the latest data, and verify the axis scales still align across sources to avoid misleading interpretations.
Troubleshooting Common Issues
If the line disappears after data changes, verify that the data range still includes numeric values and that the chart hasn’t been filtered. If the axis shows strange tick marks, check axis options for fixed minimums or maximums that skew the display. When colors look muddy, review the color theme and ensure text overlays remain readable. Finally, if the legend doesn’t reflect updates, reselect the data range or use the Select Data dialog to adjust series names. These checks help maintain accurate, trustworthy visuals.
Real-World Examples: Sales, Website Traffic, and More
Imagine tracking monthly sales, where the line plot reveals steady growth with seasonal bumps. Overlay a second line for online visits to explore possible correlations. Another scenario compares daily production output across multiple plants, highlighting peaks and downtime periods. You can also visualize sensor readings over time, weather data, or customer inquiries by day. Each example demonstrates how line plots in Excel provide a clear, scalable way to observe trends, confirm hypotheses, and present findings to stakeholders with confidence.
Tools & Materials
- Computer with Microsoft Excel(Windows or macOS; ensure Excel is up to date)
- Data set in Excel or CSV format(two columns: X values and Y values with headers)
- Two-column data template(clear headers and aligned rows)
- Excel Table (optional)(helps dynamic expansion when new data is added)
- Accessible color palette(contrast for markers and lines; colorblind-friendly)

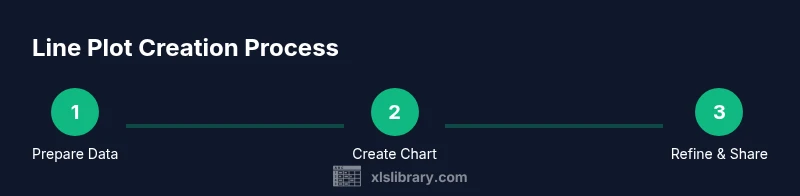

Steps
Estimated time: 15-25 minutes
- 1
Prepare your data
Ensure data is a clean two-column layout with headers. Left column holds X values (time, category, or sequence) and right column holds Y values. Check for numeric Y values and remove nonprintable characters that could disrupt plotting.
Tip: Keep headers short and descriptive to aid chart labeling. - 2
Select your data
Highlight both columns including headers. This ensures Excel uses the correct X and Y ranges when creating the chart.
Tip: Include the header row so the chart can automatically label the data series. - 3
Insert the line chart
Go to the Insert tab, choose Charts, and pick a basic 2-D Line chart. If you have multiple Y columns, Excel will plot a line for each series.
Tip: Avoid 3-D line charts; they distort perception and readability. - 4
Adjust the axes
Right-click an axis to format. Set appropriate min and max values, and consider using a date axis for time-based data.
Tip: Let Excel auto-scale for dynamic data, then fine-tune as needed. - 5
Add a second data series
If you have another Y column, go to Chart Design > Select Data > Add to include the new series. Ensure the X-values remain aligned.
Tip: Name the new series clearly in the legend for quick identification. - 6
Format lines and markers
Select each series to adjust color, line width, and marker shape. Use distinct, accessible colors to avoid confusion between series.
Tip: Keep a consistent line thickness across all charts in a dashboard. - 7
Add data labels
Highlight key points by adding data labels for peaks, troughs, or recent values. Avoid clutter by limiting the number of labeled points.
Tip: Use data labels sparingly to maintain readability. - 8
Move, resize, and save
Position the chart in a suitable area of the worksheet or move it to a dedicated chart sheet. Save your workbook to preserve the setup.
Tip: Consider a charts sheet for dashboards with multiple visuals.
People Also Ask
What is a line plot in Excel?
A line plot is a chart that connects data points with lines to show trends over time or across ordered categories. It helps compare multiple series and identify patterns.
A line plot connects data points with lines to show trends over time.
Can I use a line plot with dates on the X-axis?
Yes. Excel treats dates on the X-axis as a time-based scale. Make sure your dates are real date values and format the axis as a date axis.
Yes, dates work on the X-axis; make sure your dates are real date values.
How do I add another series to the line plot?
Open the Select Data dialog to add a second Y-series that shares the same X-values. Name the new series for clarity and choose a contrasting color.
Add a second series via Select Data and name it for clarity.
Why is my line missing or appears as a straight line?
Check that the data range includes numeric values and that the axis min/max aren’t forcing an abnormal display. Ensure there are no blank rows breaking the series.
Make sure the data contains numbers and the axis scale is appropriate.
Is a line plot suitable for large datasets?
Line plots can handle many points, but readability suffers if there are too many. Consider sampling, smoothing, or breaking data into multiple charts to stay clear.
Line plots can handle many points, but readability suffers with too much data.
Watch Video
The Essentials
- Prepare data with a clean two-column layout
- Label axes and legends clearly for readability
- Limit the number of series or use separate charts
- Use tables or named ranges for dynamic updates
