How to Add a Check Box in Excel: Step-by-Step Guide
Learn how to add a check box in Excel, link it to a cell, and use checkbox values in formulas. A practical, educator-friendly guide to Form Controls and interactive dashboards.
To add a check box in Excel, enable the Developer tab, insert a Form Control checkbox, and link it to a cell. Then copy across cells and reference the linked cells in formulas for interactive checklists and dashboards.
Why adding check boxes in Excel boosts productivity
Check boxes transform static lists into interactive checklists. According to XLS Library, adding check boxes in Excel reduces manual entry errors and makes verification faster. This is especially valuable for project tracking, task lists, inventory sheets, and inspection logs. With a simple checkbox, end-users can mark completion with a single click, and you can wire that state into formulas, conditional formatting, and dashboards. In real-world workflows, checkboxes empower teams to move from passive data to actionable insights, enabling managers to spot progress at a glance and drill down into ownership and completion rates. The approach fits across industries—from manufacturing floor logs to quarterly project sprints—because it scales with your data model and doesn’t require expensive tools. Practically speaking, a checkbox is a tiny control that unlocks big gains in speed and accuracy for Excel-heavy teams.
Prerequisites and planning
Before you add a check box, map out where you want user interactions and where the results will feed. Decide which cells will hold the linked TRUE/FALSE values and plan a clear layout that keeps your sheet readable. Consider creating a dedicated column for each checkbox or grouping related checks in a table. If you’re building a dashboard, decide which summary calculations will consume the checkbox values (for example, COUNTIF or SUMPRODUCT). This upfront thinking reduces back-and-forth edits and makes the subsequent steps precise. According to XLS Library, thoughtful layout and predictable linked cells are the foundations of reliable checkbox-driven tools. Keep accessibility in mind as well: ensure the check boxes are large enough to click and that labels are descriptive so teammates understand what they measure.
Step 1: Enable the Developer tab
First, you need access to Form Controls. Open Excel, go to File > Options, then Customize Ribbon, and check the Developer box. Click OK to reveal the Developer tab on the ribbon. The Developer tab is where you’ll find the Insert tool to add a checkbox. If you’re on a Mac, the path may differ slightly (Excel > Preferences > Ribbon & Toolbar), but the principle is the same: enable access to Form Controls to insert check boxes. This step lays the groundwork for all subsequent actions and is essential for consistent checkbox behavior across worksheets.
Step 2: Insert a Checkbox (Form Control)
On the Developer tab, click Insert and choose the Form Control Checkbox. Click anywhere on the worksheet to place the checkbox. You’ll see a caption like ‘Check Box 1’ that you can edit or remove. For clarity in dashboards, place check boxes in a clean grid aligned with their data rows. If you insert multiple checkboxes in a column, Excel will try to manage them as a group visually, but each control remains independent. The choice between keeping the default caption or removing it depends on whether you need text next to each box for end users.
Step 3: Link the checkbox to a cell
Right-click the checkbox and choose Format Control. In the Control tab, locate LinkedCell and enter a cell reference (for example, B2). This links the checkbox’s state to that cell: TRUE when checked, FALSE when unchecked. Linking to a cell is what allows you to incorporate the checkbox into formulas and dashboards. If you plan many checkboxes, consider a grid where each checkbox’s LinkedCell points to its corresponding data cell. This simple link is the bridge between a UI control and the data model.
Step 4: Copy across cells and manage LinkedCell references
To apply the same checkbox to adjacent rows, copy the checkbox. When you paste, Excel may copy the object and keep the original LinkedCell unless you update it. After pasting, re-open Format Control for each checkbox and update the LinkedCell to the next cell in your data column (for example, B3, B4, etc.). This ensures each checkbox controls its own data cell rather than flipping all to the same LinkedCell. For large sheets, consider a small macro to automate LinkedCell updates, preserving accuracy and saving time.
Step 5: Use checkbox values in formulas
With LinkedCell in place, you can incorporate the TRUE/FALSE value into formulas. For example, use =IF(B2, "Done", "Pending") to display status based on the checkbox. COUNTIF can tally checked items across a range (e.g., =COUNTIF(B2:B20, TRUE)). SUMPRODUCT is useful for multi-criteria scenarios, such as counting completed tasks in combination with other conditions. This integration turns a visual interaction into meaningful data, letting you quantify progress at scale. Always test with a few rows to confirm that the logical tests align with user expectations.
Step 6: Fine-tune appearance and behavior
Adjust the size, alignment, and caption to fit your worksheet aesthetics. You can resize the checkbox by dragging its handles or format its properties to remove borders or change the caption text. Align checkboxes with their corresponding labels for readability, and consider hiding clutter by turning off the label when you’re using compact layouts. If you’re creating a printable checklist, ensure there’s enough space for users to click and mark items with a pen if needed. Consistent appearance improves usability and reduces user confusion.
Step 7: Advanced tips and safety checks
For worksheets with many checkboxes, grouping and consistent spacing help readability. If your workbook will be shared, verify that editing permissions don’t interfere with the Form Controls. Be mindful of Excel’s protection settings: a protected sheet may block checkbox interactions unless you specifically allow editing of objects. If you need to reset a checkbox, delete and re-insert it, then re-link to the correct cell. Finally, consider whether Form Controls or ActiveX Controls best suit your needs; Form Controls are simpler and more robust across platforms.
Tools & Materials
- Excel application (Windows/macOS, preferably the latest version or Office 365 subscription)(Form Controls for check boxes are supported in desktop Excel; ensure updates are current.)
- A test workbook or worksheet(Create a dedicated sheet or area to practice inserting and linking check boxes.)
- Mouse or trackpad with precise cursor control(Helpful for accurately placing small check boxes and aligning with text.)
- Optional: a macro (VBA) script for bulk linking(If you anticipate many checkboxes, a small macro can automate LinkedCell updates.)

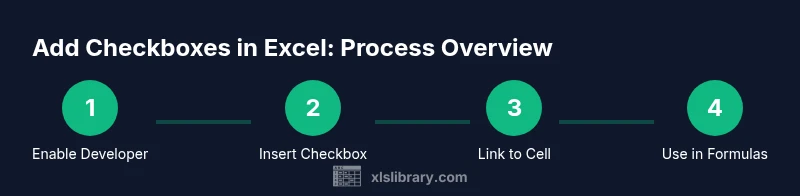

Steps
Estimated time: 20-35 minutes
- 1
Enable Developer tab
Open Excel, go to File > Options > Customize Ribbon, and check Developer. Confirm to reveal the Developer tab. This step is essential to access the Form Controls used for check boxes.
Tip: On Mac, the path may differ slightly; look under Excel > Preferences for Ribbon settings. - 2
Insert a Form Control checkbox
Click Developer > Insert > Form Control > Checkbox, then click on the worksheet to place it. The checkbox appears with a label that you can edit or remove.
Tip: If the caption is not needed, delete the text after placing the checkbox to keep a clean layout. - 3
Link the checkbox to a cell
Right-click the checkbox, choose Format Control, go to the Control tab, and set LinkedCell to the target cell (e.g., B2).
Tip: Linking to a dedicated column per row simplifies formulas and future edits. - 4
Copy across cells and update LinkedCell
Copy the checkbox to adjacent cells. For each copied box, re-open Format Control and set the LinkedCell to the next row’s cell (e.g., B3, B4).
Tip: If you copy many checkboxes, a small macro can speed up linking. - 5
Use the checkbox in formulas
Reference the LinkedCell in formulas, such as =IF(B2, "Done", "Pending"), or count checked items with =COUNTIF(B2:B20, TRUE).
Tip: Combine with data validation to build robust task trackers. - 6
Adjust appearance and alignment
Resize checkboxes, align them with labels, and adjust text to avoid overlap. A tidy layout improves usability and scan-ability.
Tip: Use the Align and Distribute tools to maintain consistent spacing. - 7
Handle common issues
If a checkbox doesn’t respond, check the LinkedCell reference, ensure the sheet isn’t protected, and confirm you edited the correct checkbox (not a shape).
Tip: For large sheets, document each LinkedCell reference to prevent future confusion. - 8
Consider alternatives for Excel Online
Some Form Controls features vary by platform. If you’re collaborating online, explore data validation options or simple text indicators as a fallback.
Tip: When in doubt, test cross-platform behavior with a small sample before full deployment.
People Also Ask
What is the difference between Form Controls and ActiveX controls for checkboxes?
Form Controls are simpler and more broadly compatible across Excel versions and platforms. ActiveX controls offer more customization but can introduce compatibility and security issues. For most checklists and dashboards, Form Controls are recommended.
Form Controls are simpler and widely compatible; ActiveX offers more customization but may cause issues. For most cases, choose Form Controls.
Can I have multiple checkboxes linked to the same cell?
Yes, but all boxes would reflect the same state, which isn’t usually desirable for itemized checklists. It’s better to link each checkbox to its own cell unless you intend a single shared state.
You can link multiple checkboxes to the same cell, but that means they’ll all show the same checked state, which is usually not what you want.
How do I count how many boxes are checked in a range?
Use a formula like COUNTIF on the linked cells, e.g., =COUNTIF(B2:B20, TRUE). This tallies the number of checked items quickly.
Use COUNTIF on the linked cells to count how many boxes are checked.
Is there a keyboard shortcut to insert a checkbox?
There isn’t a universal built-in shortcut for inserting a checkbox. Use Developer > Insert to add Form Controls, and consider recording a macro to automate repeated insertions.
There’s no single keyboard shortcut; use the Developer tab to insert checkboxes, or record a macro to automate it.
Can I use checkboxes in Excel Online?
Excel Online supports many features, but Form Controls can be limited depending on the browser and platform. If you rely on checkboxes, test in your environment or use alternative indicators like data validation lists.
Checkboxes can be limited in Excel Online; test first or use alternative indicators.
What should I do if a checkbox doesn’t update when clicked?
Verify the LinkedCell reference, ensure the worksheet isn’t protected, and confirm you’re editing the correct control. If many checkboxes are involved, consider re-linking or using a macro to manage LinkedCell consistently.
Check the LinkedCell, protection settings, and that you edited the right checkbox. Re-link if needed.
Watch Video
The Essentials
- Enable Developer tab to access Form Controls.
- Link each checkbox to a specific cell for dynamic data.
- Copy and re-link to maintain correct LinkedCell references.
- Use LinkedCell values in formulas to drive dashboards.
- Plan layout and consider platform differences for reliability.
